ASHCROFT PRESSURE GAUGE

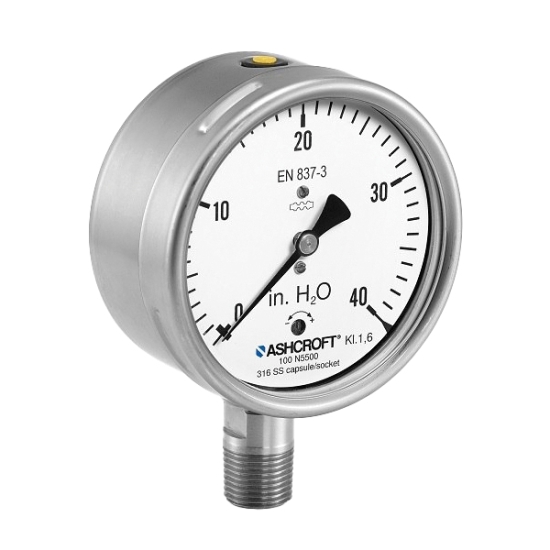

Ashcroft® Model N5500 10N5500SD02LXDA10IW Low Pressure Capsule Gauge, 100 MM Dial, 0 - 10 IN H2O, Glass Lens
- Manufacturer: Ashcroft Inc
- Brand: Ashcroft
- MGPN: GA10N5500SD02LXDA 10IW
- MPN: 10N5500SD02LXDA10IW
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Ashcroft® N5500 stainless steel capsule pressure gauge provides a dependable option for low-pressure measurement for gases and dry process media applications. The N5500 is well suited to handle both indoor and outdoor installation requirements.
Ashcroft® Low Pressure Capsule Gauge, Low Pressure Capsule Gauge, Series/Model: Model N5500, 100 MM Dial, 0 - 10 IN H2O Measuring, Units Of Measure: IN H2O, 1/4 IN MNPT Lower Connection, 1.6% Of Span Accuracy, Aluminum Dial Face, 304 Stainless Steel Case, Glass Lens, Aluminum Pointer, Movement Material: 304 Stainless Steel, 316Ti Stainless Steel Tube, 316 Stainless Steel Socket, Filled With: Dry, Stem Mounting, -13 To 212 DEG F, 3.97 IN Length, 3.97 IN Width, 1.95 IN Depth, Industry Standards: CE Marked, UKCA Approved, Additional Specifications: DA: Dial Marking
| Item Name | : | Low Pressure Capsule Gauge |
| Series/Model | : | Model N5500 |
| Dial Size | : | 100 MM |
| Measuring Range | : | 0 - 10 IN H2O |
| Units Of Measure | : | IN H2O |
| Connection | : | 1/4 IN MNPT Lower |
| Accuracy | : | 1.6% Of Span |
| Dial Face | : | Aluminum |
| Case Material | : | 304 Stainless Steel |
| Lens Material | : | Glass |
| Pointer Material | : | Aluminum |
| Movement Material | : | 304 Stainless Steel |
| Tube Material | : | 316Ti Stainless Steel |
| Socket Material | : | 316 Stainless Steel |
| Filled With | : | Dry |
| Mounting | : | Stem |
| Temperature Rating | : | -13 To 212 DEG F |
| Length | : | 3.97 IN |
| Width | : | 3.97 IN |
| Depth | : | 1.95 IN |
| Industry Standards | : | CE Marked, UKCA Approved |
| Additional Specifications | : | DA: Dial Marking |
- Designed for use with air or gas service
- Stainless steel construction
- Suitable for corrosive environments
- Overpressure protection up to 10 times range
- Easy zero adjustment through dial
- Weatherproof IP65 case
