5/8 FIG 21 GALV C-CLAMP

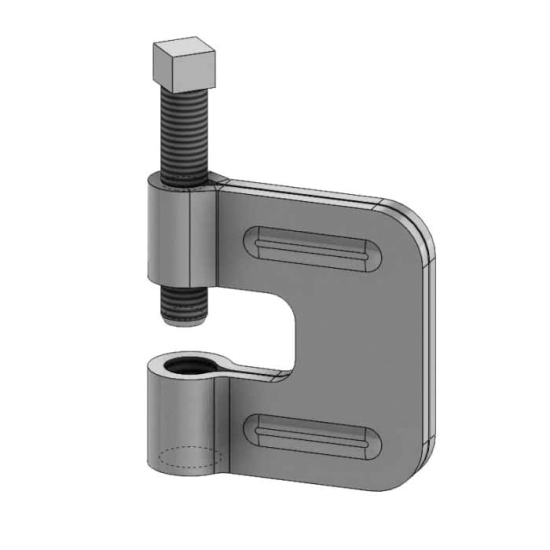

Empire Industries FIG 21G 21G0058 C-Type Beam Clamp With Locknut, 5/8-11 Rod, 5 IN Conduit/Pipe, 550 LB Load Max
- Manufacturer: Empire Industries Inc
- Brand: Empire Industries
- MGPN: HGR C CLAMP GALV 5/8
- MPN: 21G0058
- UPC: 66302701537
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Empire's 21 steel C-clamps are designed for attaching hanger rod to the bottom flange of a beam. Features the ribbed design for added strength. Hardened steel cup point set screw secures clamp to beam. Stainless steel hangers are recommended for applications where protection from a corrosive environment is required.
Empire Industries C-Type Beam Clamp With Locknut, C-Type Beam Clamp With Locknut, Series/Model: FIG 21G, 5/8-11 Rod, Conduit/Pipe Size: 5 IN, 550 LB Maximum Load, 3/4 IN Jaw Opening, Industry Standards: MSS SP-69, Finish/Color: Electro-Galvanized, 2-3/8 IN Length, 2-5/16 IN Width, Additional Specifications: Screw Size: 1/2-13, 0.550 LB Weight
| Item Name | : | C-Type Beam Clamp With Locknut |
| Series/Model | : | FIG 21G |
| Rod Size | : | 5/8-11 |
| Conduit/Pipe Size | : | 5 IN |
| Maximum Load | : | 550 LB |
| Jaw Opening | : | 3/4 IN |
| Industry Standards | : | MSS SP-69 |
| Finish/Color | : | Electro-Galvanized |
| Length | : | 2-3/8 IN |
| Width | : | 2-5/16 IN |
| Additional Specifications | : | Screw Size: 1/2-13 |
| Weight | : | 0.550 LB |
- Designed for attaching hanger rod to the bottom flange of a beam
- Features the ribbed design for added strength
- Hardened steel cup point set screw secures clamp to beam
