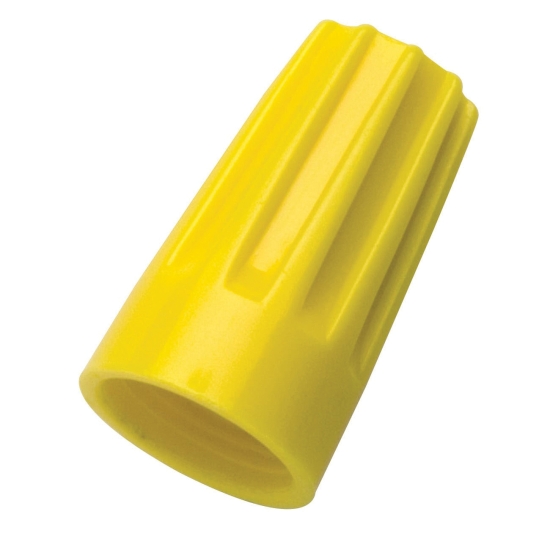

IDEAL IND 30-074 YELLOW CON

IDEAL Wire-Nut® wire connectors set the bar for quality and convenience. A fixed, square-cut spring and a tough, flame-retardant shell, provide a secure connection that lasts. Twisting by hand is a breeze thanks to the positive grip design that is also compatible with IDEAL Twist-a-Nut® screwdrivers for additional ease and speed. Its wide wire range is suitable for a variety of applications and is an ideal choice when working with fine stranded wire. The original Wire-Nut®, still an industry standard today.

IDEAL® Wire Connector, Type: Twist-On, Sub Brand: Wire-Nut®, Item Name: Wire Connector, 18-12 AWG, 0.95 IN Length, 0.55 IN Width, Copper, Finish/Color: Yellow, 221 DEG F, Industry Standards: CSA Certified, UL Listed, Additional Specifications: 600 V Maximum Voltage, Thermoplastic Polyester Insulation, 6 Conductors, 7/16 IN Strip Length

• Square wire fixed spring design creates its own threads for a secure hold
• Suitable for a variety of applications and is an ideal choice when working with fine stranded wire
• Positive grip shell is comfortable to twist-on with fingers
• Can easily be applied using the line of Twist-a-Nut® screwdrivers
• For use in wire combinations ranging from minimum 2 #18 AWG to maximum 4 #14 with 1 #18 AWG

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/PM0030074_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/PM0030074_Spec.pdf
