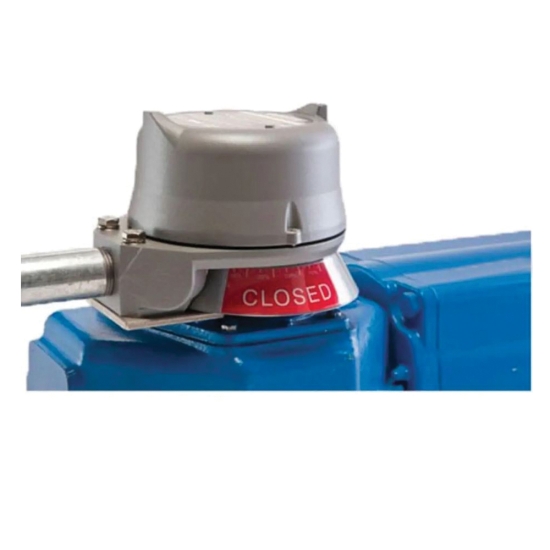

QN2HP02SDM PROX QUARTZ SWITCH

Stonel™ Proximity Quartz Switch, Type Non-Incendive Proximity Quartz Switch, Series/Model: Series QN Sensing Distance, Voltage Rating 240 V, Output, Amperage Rating 3 A, Aluminum Finish/Color, Connection NPT Anodized/Epoxy-Coated, Temperature Rating -40 - 80 DEG C 2 - 100 W, NEC/CEC Cover Industry Standards Enclosure, Other Physical Dimension, Connector Specification (2) SPDT Maxx-Guard 3 A Sensor, 3/4 x 1/2 IN Conduit Entries, Short Visual Indicator Output, Red Closed/Green Open Indicator

Item Name	:	Proximity Quartz Switch
Type	:	Non-Incendive
Series/Model	:	Series QN
Voltage Rating	:	240 V
Amperage Rating	:	3 A
Material	:	Aluminum
Finish/Color	:	Anodized/Epoxy-Coated
Connection	:	NPT
Power Rating	:	2 - 100 W
Temperature Rating	:	-40 - 80 DEG C
Enclosure	:	NEC/CEC Cover
Additional Specifications	:	(2) SPDT Maxx-Guard 3 A Sensor, 3/4 x 1/2 IN Conduit Entries, Short Visual Indicator Output, Red Closed/Green Open Indicator

Wide variety of switching and communication options including solid state proximity and mechanical switches as well as communication and 4-20 mA continuous outputs

Enclosures optimized for tough process environments

Rapid enclosure access

Quick set cams

Extremely compact with space saving visual indication

Dual shaft O-ring seals

The oil impregnated bronze bushing maintains smooth operation and eliminates the potential for shaft seizure due to actuator shaft eccentricity

Top inner and bottom outer shaft O-rings seal the drive bushing from both external corrosives and internal contaminants

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/JSWITCHQN2HP02SDM_Broc.pdf
