2 150 ELECTROSTOP WELD-IN

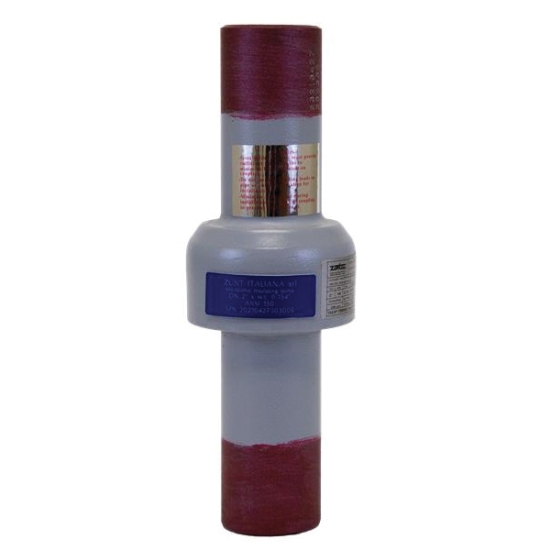

Kerotest Zunt 72630056 Monolithic Insulating Joint, 2 IN, Butt Weld, Carbon Steel, Epoxy-Coated, 0.154 IN Thick Wall

  • Manufacturer: Kerotest
  • Brand: Kerotest
  • MGPN: ELECTROSTOP 2 7100000004
  • MPN: 72630056
  • CPN:
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • See All Availability
  • Price: loading
  • Qty Add To Cart
  • My Favorites
    Add / Remove CPN
  • 888-756-4110 888-756-4110
  • DESCRIPTION
  • SPECIFICATIONS
  • FEATURES
  • Documents

The solid weld design of the Kerotest Zunt insulating joints is more economical and comes in a broader range than any previous insulating joint from Kerotest from 1/2 to 120 IN and over, ANSI 150 to 2500. There is no assembly required and no maintenance.

Kerotest Monolithic Insulating Joint, Sub Brand: Zunt, Item Name: Monolithic Insulating Joint, 2 IN, Butt Weld Connection, 0.154 IN Wall Thickness, Carbon Steel, Finish/Color: Epoxy-Coated, Industry Standards: ANSI 150, ASTM, ASME, AISI, API, IEC and ISO

Sub Brand      :      Zunt
Item Name      :      Monolithic Insulating Joint
Size      :      2 IN
Connection Type      :      Butt Weld
Wall Thickness      :      0.154 IN
Material      :      Carbon Steel
Finish/Color      :      Epoxy-Coated
Industry Standards      :      ANSI 150, ASTM, ASME, AISI, API, IEC and ISO
  • Compact design
  • Low-profile
  • Complete range of sizes and pressure classes
  • Each joint is internally lined with epoxy resin to effectively prevent bridging of the insulating gap
  • Weld preps are per API 5L
  • All welding processes are in accordance with ASME VIII and IX
  • Each joint is factory tested to verify the mechanical integrity and electrical resistance to satisfy cathodic protection requirements
  • Eliminates electrical shorts and stops stray current in a pipeline system
  • Most economical and reliable method that can be used to cathodically protect a pipeline system
  • Can be installed above or below ground
  • Reduced installation time (just to welds), eliminates field assembly of bulky insulated flanges and bolted couplings
  • Long term electrical resistance does not depend on installers assembly of an insulation kit
  • Eliminates costly maintenance to field repair flange leaks and electrical shorts
  • pdf Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ELECTROSTOP12API5LX52_Broc.pdf
  • pdf Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ELECTROSTOP12API5LX52_Spec.pdf
