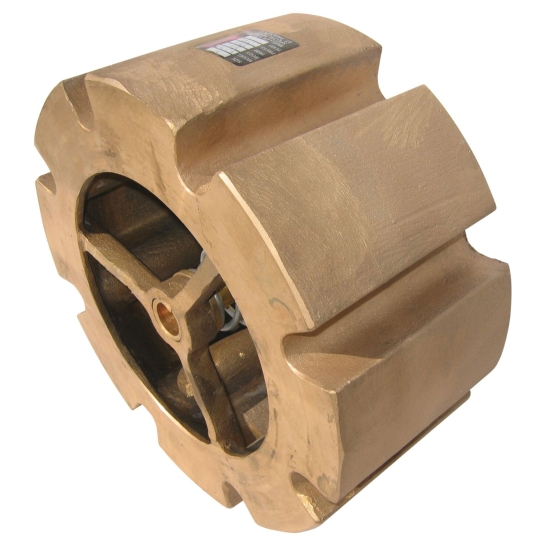

8 MUELLER #92 AP CENTER

Series 92 cast iron or cast aluminum bronze compact wafer silent check valves are designed for liquids and gases where flow reversal can cause surge and water hammer.

Mueller Steam Specialty Check Valve, Type: Compact Wafer Silent, Check Valve, Series/Model: Model 92AP, 8 IN Nominal, 200 PSI At 150 DEG F, Cast Iron Body, Bronze Disc Trim, Bronze Seat, Material Standard: Body: ASTM A126 Class B, Additional Specifications: Suitable For Use With: 125 Or 150 LB Flanges, 86.000 LB Weight

• Compact, lightweight wafer design saves space
• Disc begins to open at 0.5 PSI (34.5 KPA), and opens 1/3 inch per inch of line size for enhanced flow
• Disc is fully guided at top and bottom to ensure alignment and sealing at any installation angle
