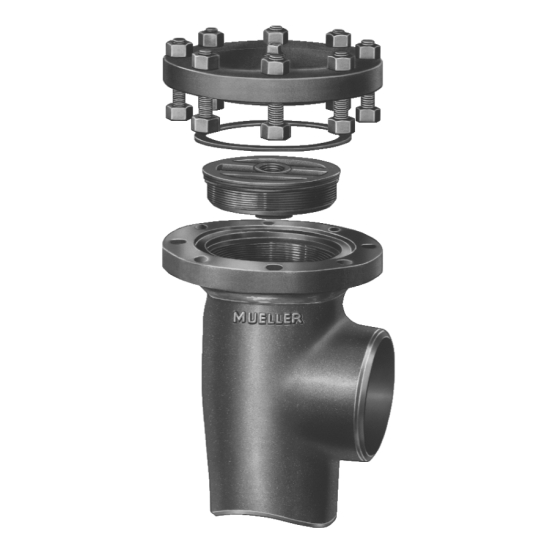

4 MUELLER H17506 TEE
Mueller 017506 740 Tee, 4 IN, Flanged, Steel, 0.188 IN Thick Wall, 4.124 IN ID, 4-1/2 IN OD, 720 PSIG Max, 100 DEG F
- Manufacturer: Mueller Systems
- Brand: Mueller
- MGPN: MUELLER H17506 4
- MPN: 017506 740
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Mueller Tee, Item Name: Tee, 4 IN Nominal, Flanged Connection, 0.188 IN Wall Thickness, Steel, 4.124 IN Inside Diameter, 4-1/2 IN Outside Diameter, 720 PSIG Maximum Pressure, 100 DEG F, Industry Standards: DOT/CFR Title 49 Part 192
| Item Name | : | Tee |
| Nominal Size | : | 4 IN |
| Connection Type | : | Flanged |
| Wall Thickness | : | 0.188 IN |
| Material | : | Steel |
| Inside Diameter | : | 4.124 IN |
| Outside Diameter | : | 4-1/2 IN |
| Maximum Pressure | : | 720 PSIG |
| Temperature Rating | : | 100 DEG F |
| Industry Standards | : | DOT/CFR Title 49 Part 192 |
- For use on steel pipe only bottom of tee is contoured to fit pipe one size larger than nominal size of tee
- O-ring sealed cast iron (ASTM A126 Class B) completion plug with equalizing valve
- Flange, completion cap are forged steel (ASTM A105)
- Tee body is forged steel (ASTM A234, Grade WPB)
- Class 300 flange complies with dimensional requirements of ANSI B16.5
