3 PVC S45TB-V TRU UNION SW BALL

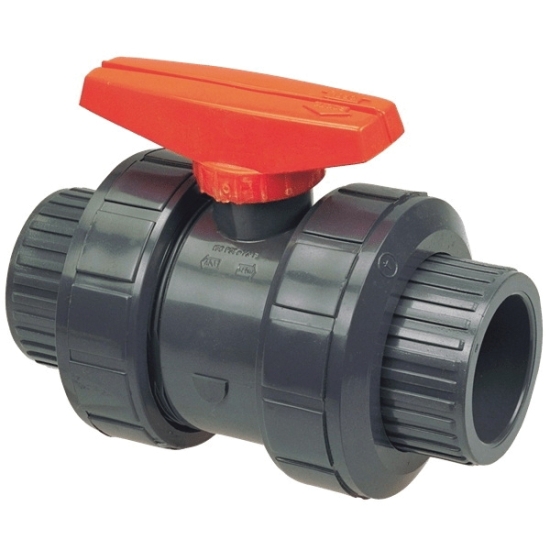

NIBCO Chemtrol®, Tru-Bloc® S45TB-V MA599AF Ball Valve, 3 IN, S Socket X S Socket, PVC, 150 PSI
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BA PVC TU 3
- MPN: MA599AF
- UPC: 039923741998
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Chemtrol® Tru-Bloc® true union ball valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system. The valve's injection molded PVC construction with FKM O-ring is ideal for use in chemical processing, industrial plating, chilled water distribution, chemical drainage and irrigation systems.
NIBCO Chemtrol® Tru-Bloc® S45TB-V Ball Valve, 3 IN Nominal, S Socket X S Socket Connection, 150 PSI, 140 DEG F, PVC Body, Direct Handle Operator, PVC Handle, PVC Stem, PTFE Seat, FKM Seal, Other Physical Dimension: 5.59 IN Top To Inlet Center
| Brand Name | : | NIBCO |
| Sub Brand | : | Chemtrol®, Tru-Bloc® |
| Item Name | : | Ball Valve |
| Series/Model | : | S45TB-V |
| Nominal Size | : | 3 IN |
| Connection Type | : | S Socket X S Socket |
| Pressure Rating | : | 150 PSI |
| Temperature Rating | : | 140 DEG F |
| Body Material | : | PVC |
| Operator Type | : | Direct Handle |
| Handle Material | : | PVC |
| Stem Material | : | PVC |
| Seat Material | : | PTFE |
| Seal Material | : | FKM |
| Other Physical Dimension | : | 5.59 IN Top To Inlet Center |
- Valve pressure rating 150 PSI at 73 DEG F water non-shock
- True union design
- Orange handle
- Do not use or test with compressed air or other gases
