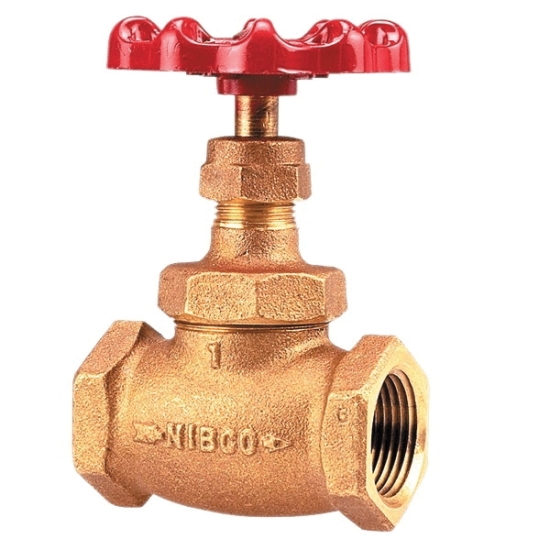

1/2 NIBCO KT-65 GLOBE VALVE
NIBCO KT-65-UL N53XA16 Fire Protection Globe Valve, 1/2 IN, Threaded, Bronze, 175 PSI WWP
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV GL BR UL KT65 1/2
- MPN: N53XA16
- UPC: 039923601452
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO bronze globe valve is recommended for trim valve application in an automatic fire sprinkler system. The resilient seat allows positive shut-off at 175 PSI WWP.
NIBCO KT-65-UL Fire Protection Globe Valve, 1/2 IN Nominal, Threaded Connection, 175 PSI WWP, Pressure Class: Class 125, Bronze Body, Standard Handwheel Operator, Bronze Stem, Graphite Packing, Industry Standards: UL Listed, 2.28 IN Width, Other Physical Dimension: 3.12 IN Center To Top, 0.68 LB Weight
| Item Name | : | Fire Protection Globe Valve |
| Series/Model | : | KT-65-UL |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 175 PSI WWP |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Stem Material | : | Bronze |
| Packing Material | : | Graphite |
| Industry Standards | : | UL Listed |
| Width | : | 2.28 IN |
| Other Physical Dimension | : | 3.12 IN Center To Top |
| Weight | : | 0.68 LB |
- Integral seat
- Screw over bonnet
- Renewable seat disc
