3/4 B3034Z PLTD WEDGE C-CLAMP

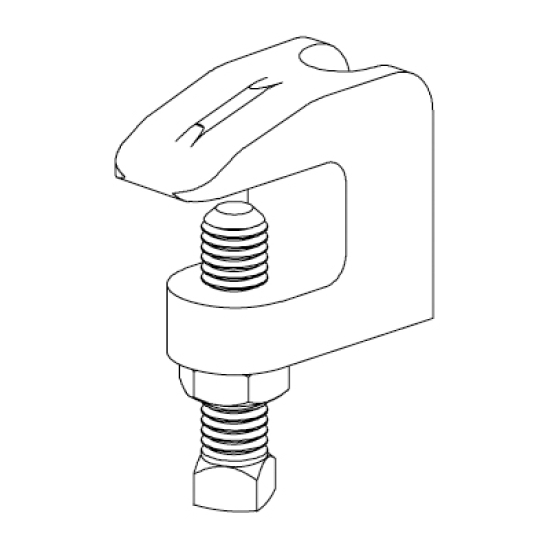

PHD 350 1075EG Beam Clamp, 3/4 IN, 800 LB, Malleable Iron, Electro Galvanized
- Manufacturer: PHD Manufacturing, Inc
- Brand: PHD
- MGPN: 075B3034Z
- MPN: 350 1075EG
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
PHD Beam Clamp, Item Name: Beam Clamp, 3/4 IN Nominal, Maximum Load: 800 LB, Malleable Iron, Industry Standards: UL Listed, cUL Listed, Federal Specification A-A-1192A (Type 19) and Manufacturers Standardization Society ANSI/MSS SPSP-58, Finish/Color: Electro Galvanized, Domestic/Import: Import, Additional Specifications: Suitable For Use With 8 IN Pipe
| Item Name | : | Beam Clamp |
| Nominal Size | : | 3/4 IN |
| Maximum Load | : | 800 LB |
| Material | : | Malleable Iron |
| Industry Standards | : | UL Listed, cUL Listed, Federal Specification A-A-1192A (Type 19) and Manufacturers Standardization Society ANSI/MSS SPSP-58 |
| Finish/Color | : | Electro Galvanized |
| Domestic/Import | : | Import |
| Additional Specifications | : | Suitable For Use With 8 IN Pipe |
- Designed for attaching hanger rod to the top flange of a beam or bar joist, where the flange thickness does not exceed 3/4 IN, the open U design permits rod adjustment
