2-1/2 B3198HCT COPPER TUBE HGD SPLIT

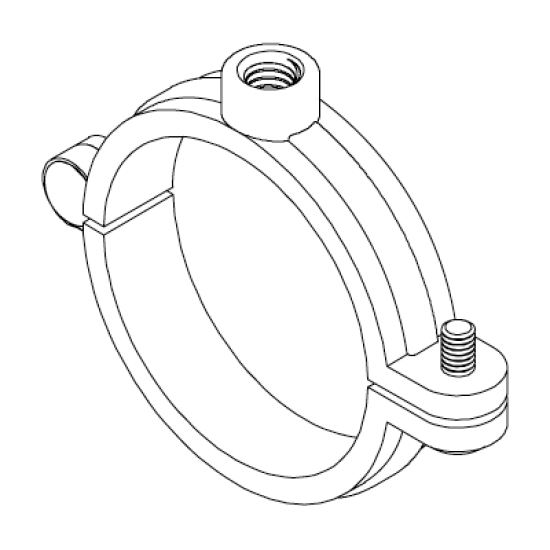

PHD 512H0250CP Extension Split Clamp, 2-1/2 IN, 300 LB, Malleable Iron, Epoxy Painted
- Manufacturer: PHD Manufacturing, Inc
- Brand: PHD
- MGPN: 250B3198HCT
- MPN: 512H0250CP
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
PHD Extension Split Clamp, Type: Hinged, Item Name: Extension Split Clamp, 2-1/2 IN Nominal, 1/2 IN Bolt, Maximum Load: 300 LB, Malleable Iron, Industry Standards: Federal Specification A-A-1192A (Type 12) and Manufacturers Standardization Society ANSI/MSS SP-58 (Type 12), Finish/Color: Epoxy Painted, Domestic/Import: Domestic
| Item Name | : | Extension Split Clamp |
| Type | : | Hinged |
| Nominal Size | : | 2-1/2 IN |
| Bolt Size | : | 1/2 IN |
| Maximum Load | : | 300 LB |
| Material | : | Malleable Iron |
| Industry Standards | : | Federal Specification A-A-1192A (Type 12) and Manufacturers Standardization Society ANSI/MSS SP-58 (Type 12) |
| Finish/Color | : | Epoxy Painted |
| Domestic/Import | : | Domestic |
- Designed for non-insulated stationary tubing lines in either a horizontal or vertical position
- The hinged design of Fig 512H allows for a quicker installation
