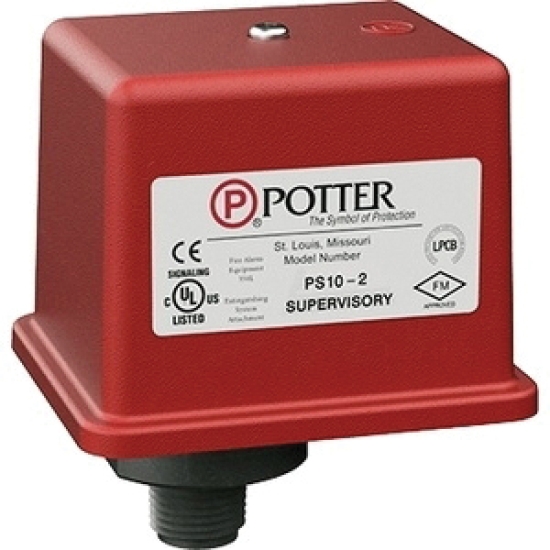

The Potter® PS10 Series pressure actuated switches are designed for the detection of a water flow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, pre-action or deluge valves. The PS10 is also suitable to provide a low pressure supervisory signal, adjustable between 4 and 15 PSI.

POTTER® PS10 Pressure Switch, 125/250 VAC, 30 VDC, 10.1 A at 125/250 VAC, 2 A at 30 VDC, Composite/Die Cast, Industry Standards: cULus Listed, CE Marked, FM Approved, LPCB, Additional Specifications: Temperature Range: -40 - 140 DEG F, Pressure Range: 4 - 15 PSI

• Independent switch adjustment on two switch models, no tools needed
• Two 1/2 IN conduit/cable entrances
• Separate isolated wiring chambers
• Non-corrosive pressure connection
• Non-conductive enclosure

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/POTSWITCHPS102_Spec.pdf
