1/4 800 A105 GL08TA58GB THD GLOBE VLV

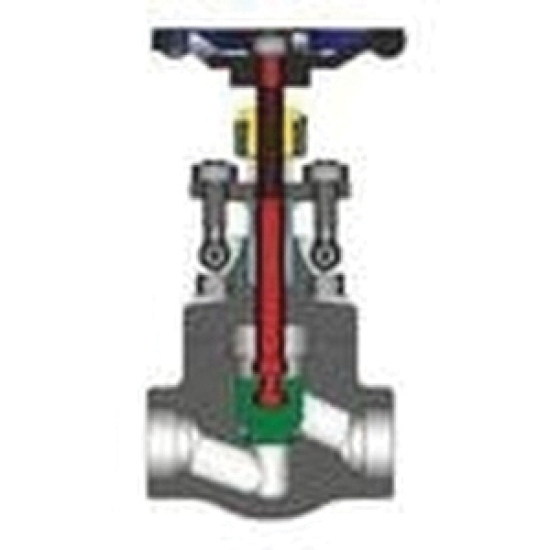

Powell GL08TA58GB GL08TA58GB-002 Globe Valve, 1/4 IN, Threaded, Forged Carbon Steel
- Manufacturer: Powell Valves
- Brand: Powell
- MGPN: VLV GL FS THD BB T8 POWELL 1/4
- MPN: GL08TA58GB-002
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Powell GL08TA58GB Standard Port Bolted Bonnet Globe Valve, 1/4 IN Nominal, Threaded Connection, Pressure Class: Class 800, Forged Carbon Steel Body, Handwheel Operator, Forged Steel Stem, API #8 Trim, Graphite Packing, 420 Stainless Steel Gland, Material Standard: ASTM A105, ASTM A182 F6A, Industry Standards: API 602, ASME B16.34, ASME B16.10, ASME B1.20.1, 3.11 IN Width, Lead Free: No, Other Physical Dimension: 11 IN Inlet Center To Top Of Handle, 7.1 IN Handwheel Diameter, Additional Specifications: Flow Co-Efficient: 22.4
| Item Name | : | Globe Valve |
| Type | : | Standard Port, Bolted Bonnet |
| Series/Model | : | GL08TA58GB |
| Nominal Size | : | 1/4 IN |
| Connection Type | : | Threaded |
| Pressure Class | : | Class 800 |
| Body Material | : | Forged Carbon Steel |
| Operator Type | : | Handwheel |
| Stem Material | : | Forged Steel |
| Trim Material | : | API #8 |
| Packing Material | : | Graphite |
| Gland Material | : | 420 Stainless Steel |
| Material Standard | : | ASTM A105, ASTM A182 F6A |
| Industry Standards | : | API 602, ASME B16.34, ASME B16.10, ASME B1.20.1 |
| Width | : | 3.11 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 11 IN Inlet Center To Top Of Handle, 7.1 IN Handwheel Diameter |
| Additional Specifications | : | Flow Co-Efficient: 22.4 |
