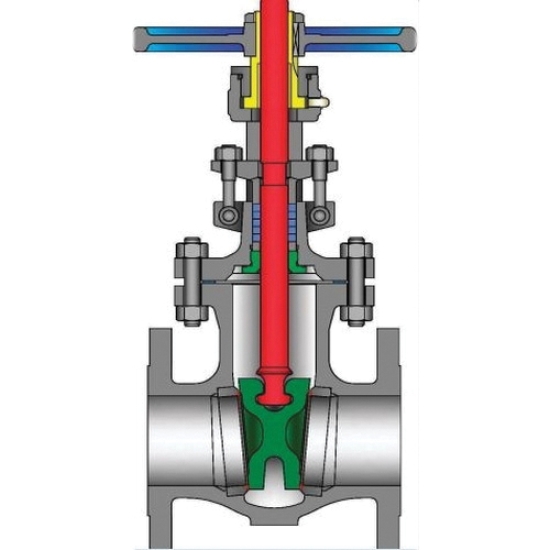

Powell 1503 Gate Valve, 3 IN Nominal, Flanged Connection, Pressure Class: Class 150, Carbon Steel Body, Handwheel Operator, Malleable Iron/Steel Handle, 410 Stainless Steel Stem, 410 Stainless Steel Trim, Graphite Packing, 410 Stainless Steel Gland, Stainless Steel/Stellite Seat, Material Standard: ASTM A216, A217, A193, A194, Finish/Color: Smooth

• Flexible wedge for improved seating and ease of operation, especially in high-temperature service
• Wedges are accurately guided thru the entire stroke
• Standard trim is API trim 8 for carbon steel valves, API trim 5 for chrome alloy valves and API trim 10 for CF8M (T316) valves for optimal performance under normal conditions
• Seat faces lapped for smooth finish and superior sealing
• Stems are non-rotating with surface finish to maximize packing seal for low fugitive emissions
• Bonnet and yoke arms designed for ease of gear, motor or cylinder actuator adaptation
• Each valve is shell, seat and backseat pressure tested per industry standard API 598
• Gland is 2-piece gland/gland flange design for optimal alignment and uniform packing compression
• Weld ends are available per ASME B16.25 or per customer's specification
• Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test report, inspection report and certificate of conformance

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTCS150T8POWELL5_Spec.pdf
