6x5 BCI CON RED

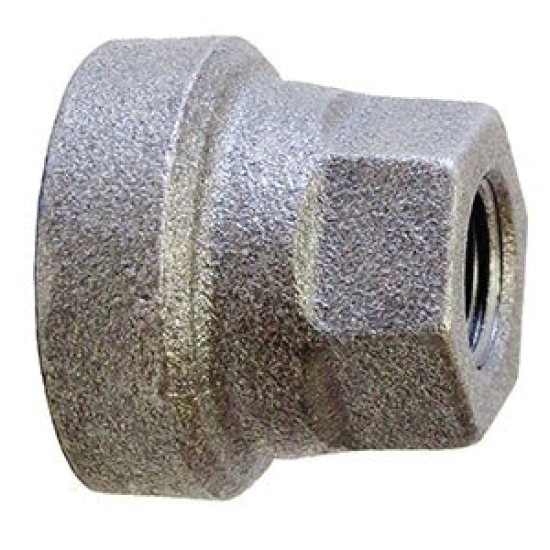

Anvil FIG 367 0300152105 Concentric Reducer, 6 X 5 IN, FNPT, Class 125, STD/SCH 40, Cast Iron, Black
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: RED BC CONC 6X5
- MPN: 0300152105
- UPC: 690291016172
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to federal specifications, WW-P-501 (except plugs and bushings WW-P-471).
Anvil Concentric Reducer, Concentric Reducer, Series/Model: FIG 367, Pressure Class: Class 125, 6 X 5 IN Nominal, Connection Type: FNPT, STD/SCH 40, Cast Iron, Material Standard: ASTM A126 Class A, Finish/Color: Black, 3-9/16 IN Length, 175 PSI Maximum Pressure, -20 To 400 DEG F, Industry Standards: ASME B16.4, cULus Listed, FM Approved, 29.100 LB Weight
| Item Name | : | Concentric Reducer |
| Series/Model | : | FIG 367 |
| Pressure Class | : | Class 125 |
| Nominal Size | : | 6 X 5 IN |
| Connection Type | : | FNPT |
| Schedule | : | STD/SCH 40 |
| Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Class A |
| Finish/Color | : | Black |
| Length | : | 3-9/16 IN |
| Maximum Pressure | : | 175 PSI |
| Temperature Rating | : | -20 To 400 DEG F |
| Industry Standards | : | ASME B16.4, cULus Listed, FM Approved |
| Weight | : | 29.100 LB |
