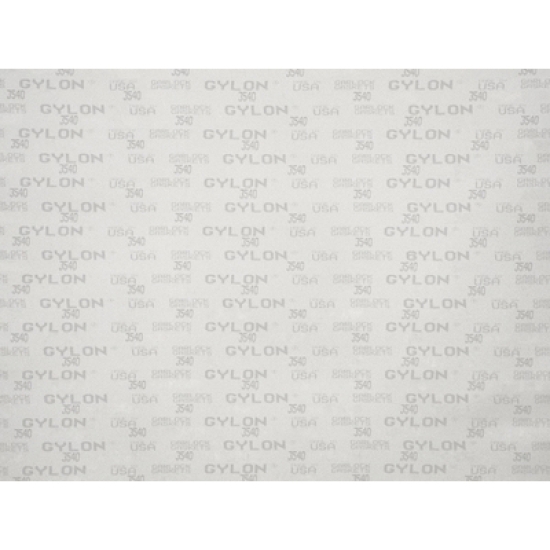

1/8 X 60 X 60 3540 GYLON

The Gylon® style 3540 gasket is a highly compressible, microcellular PTFE gasketing material designed to compress and conform to irregular or damaged surfaces, making it suitable for flanges that generate lower compressive stresses, such lined flanges and equipment.

Garlock Gylon® Gasket Sheet, Gylon®, Gasket Sheet, Series/Model: Style 3540, 1/8 IN Thickness, Microcellular PTFE, Finish/Color: White, Industry Standards: FDA Approved, REACH Compliant, RoHS Compliant, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free, 1200 PSI Maximum Pressure, -450 To 500 DEG F, Other Physical Dimension: 60 IN Length, 60 IN Width, Additional Specifications: Branding: Branded

• Tight seal
• Highly compressible PTFE seals under low bolt load
• Compressible material conforms to surface irregularities, especially on warped, pitted, or scratched flanges
• Reduced cold flow and creep
• Pure PTFE withstands a wide range of chemicals
• Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime
• Will not support flame
• Will not support bacterial growth

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/SHT2900116X60_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/SHT354018X60_Spec.pdf
