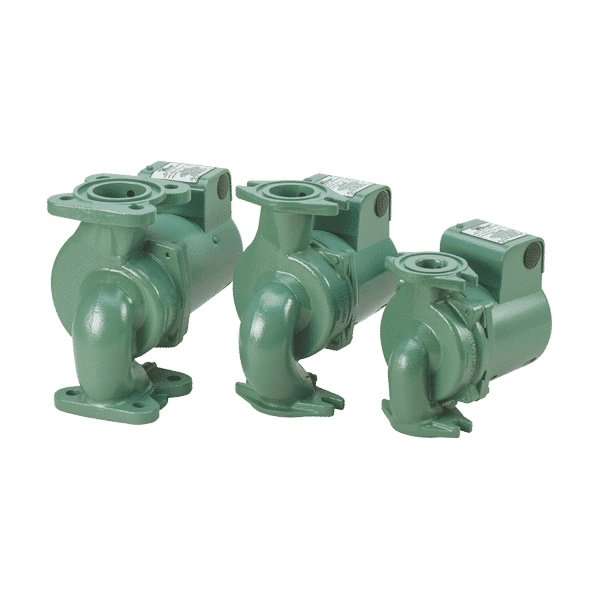

Taco® 2400 Series 2400-65-3P Circulating Pump, 0 - 90 GPM, 1/3 HP, Circulating Pump, 46 FT, 150 PSI, 3450 RPM, 2 IN

Taco 2400 Series high-capacity circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close coupled, maintenance-free motor with permanently lubricated, sealed for life bearings, stainless steel shaft, Noryl® impeller and durable, carbon/silicon carbide mechanical seal provide unmatched reliability.

Taco® Circulating Pump, 3.6 A At 115 V, 1.7 A At 230 V, NPT Connection, 0 - 90 GPM Flow Rate, 60 HZ, 8-1/2 IN Height, Cast Iron Housing, 1/3 HP, Glass Filled Noryl Impeller, Industry Standards: cULus Listed, Low Lead Compliant NSF Certified, Item Name: Circulating Pump, 9-7/8 IN Length, 46 FT Maximum Head, 1 PH Phase, 150 PSI, 3450 RPM Rating, Series/Model: 2400 Series, Stainless Steel Shaft, 2 IN, 40 - 225 DEG F, 115 V, 5-1/2 IN Width

• Compact, space saving design
• Powerful close coupled, maintenance-free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2 IN stainless steel shaft
• Carbon/silicon carbide mechanical seal for long life
• Universal flange to flange dimensions - ideal for retrofits
• Anti-condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Taco_2400-65-3P_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Taco_2400-65-3P_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Taco_2400-65-3P_Specification_Sheet.pdf
