6x6x2-1/2 BCI TEE

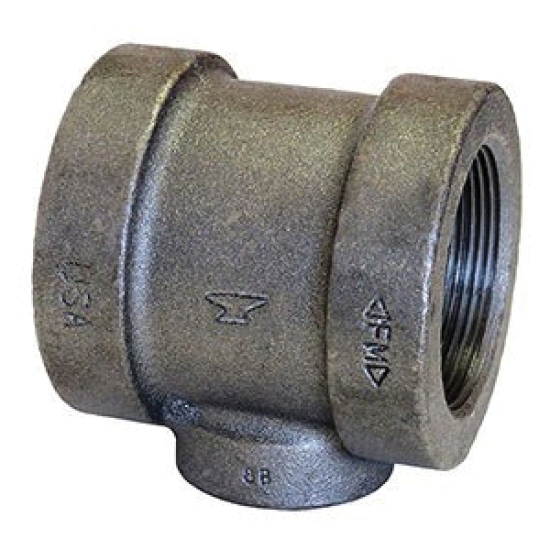

Anvil FIG 359 0300086402 Reducing Tee, 6 X 6 X 2-1/2 IN, FNPT, Class 125, STD/SCH 40, Cast Iron, Black
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: TEE BC 6X2-1/2
- MPN: 0300086402
- UPC: 690291014932
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to federal specifications, WW-P-501 (except plugs and bushings WW-P-471).
Anvil Reducing Tee, Reducing Tee, Series/Model: FIG 359, Pressure Class: Class 125, 6 X 6 X 2-1/2 IN Nominal, Connection Type: FNPT, STD/SCH 40, Cast Iron, Material Standard: ASTM A126 Class A, Finish/Color: Black, 175 PSI Maximum Pressure, -20 To 400 DEG F, Industry Standards: ASME B16.4, cULus Listed, FM Approved, Other Physical Dimension: 3-1/4 X 3-1/4 X 4-3/4 IN Center To End, 25.670 LB Weight
| Item Name | : | Reducing Tee |
| Series/Model | : | FIG 359 |
| Pressure Class | : | Class 125 |
| Nominal Size | : | 6 X 6 X 2-1/2 IN |
| Connection Type | : | FNPT |
| Schedule | : | STD/SCH 40 |
| Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Class A |
| Finish/Color | : | Black |
| Maximum Pressure | : | 175 PSI |
| Temperature Rating | : | -20 To 400 DEG F |
| Industry Standards | : | ASME B16.4, cULus Listed, FM Approved |
| Other Physical Dimension | : | 3-1/4 X 3-1/4 X 4-3/4 IN Center To End |
| Weight | : | 25.670 LB |
