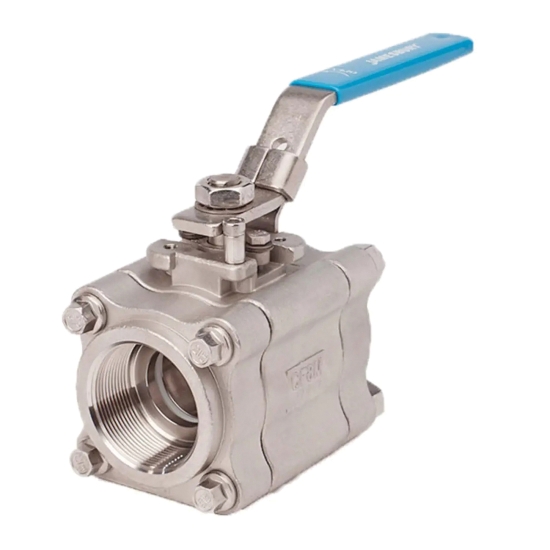

Jamesbury™ Fire-Tite 4000 Series/Model B MA0003282 3-Piece Ball Valve, 1/2 IN, Socket Weld, Carbon Steel, 2500 PSI
1/2 JAMESBURY SW 4000 STD
- Manufacturer: Valmet
- Brand: Jamesbury™
- MGPN: J 4C-2236XTB 1/2
- MPN: MA0003282
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Jamesbury™ 3-Piece Ball Valve, Type: Standard Port, Carbon Steel Body, Socket Weld Connection, Carbon Steel Handle, Industry Standards: ISO-15848 Certified, Item Name: 3-Piece Ball Valve, Material Standard: ASTM A216 Type WCB, 1/2 IN Nominal, Other Physical Dimension: 2.36 IN Top To Inlet Center, 2500 PSI, Graphite/TFM Seal, Xtreme™ Seat, Series/Model: 4000 Series/Model B, Stainless Steel Stem, Sub Brand: Fire-Tite, -20 To 100 DEG F, 0.410 LB Weight, 2.59 IN Width, Additional Specifications: Ball Material: Stainless Steel
| Additional Specifications | : | Ball Material: Stainless Steel |
| Body Material | : | Carbon Steel |
| Connection Type | : | Socket Weld |
| Handle Material | : | Carbon Steel |
| Industry Standards | : | ISO-15848 Certified |
| Item Name | : | 3-Piece Ball Valve |
| Material Standard | : | ASTM A216 Type WCB |
| Nominal Size | : | 1/2 IN |
| Other Physical Dimension | : | 2.36 IN Top To Inlet Center |
| Pressure Rating | : | 2500 PSI |
| Seal Material | : | Graphite/TFM |
| Seat Material | : | Xtreme™ |
| Series/Model | : | 4000 Series/Model B |
| Stem Material | : | Stainless Steel |
| Sub Brand | : | Fire-Tite |
| Temperature Rating | : | -20 To 100 DEG F |
| Type | : | Standard Port |
| Weight | : | 0.410 LB |
| Width | : | 2.59 IN |
- Robust engineering design
- Self-relieving seat technology
- Patented stem seal technology
- ISO compliant bonnet
- High-quality
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble tight shut-off
- Automatable
