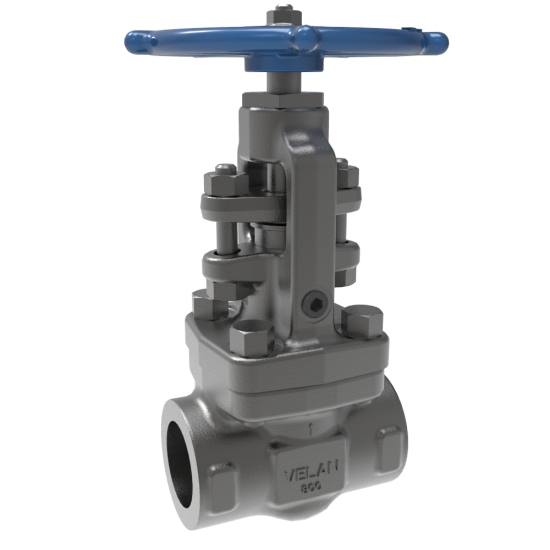

Velan Globe Valve, Type: Vertical Bolted Bonnet, Item Name: Globe Valve, 1/4 IN Nominal, Socket Weld Connection, 600/800 PSI, Pressure Class: Class 800, Forged Steel Body, 13% Chromium Steel Stem, 13% Chromium Steel Trim, Cobalt Chromium Alloy Seat, Material Standard: ASTM A105, API 602

• A compact but extremely sturdy design for high pressure temperature service
• Packing rings are pre-compressed in the packing chamber to ensure equal stress distribution, effectiveness of all rings and a high integrity seal
• For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength welded, offering double protection against leakage
• CoCr alloy hard faced disc (optional) ensures low friction and long service life
• Body guided disc eliminates side thrust and provides longer disc, seat and body life
• Pre-positioned field injection ports for precise application of low emissions (Low-E) injectable packing through the bonnet
