21/2 F09-0114C-02TY 150 VELAN CS FLGD

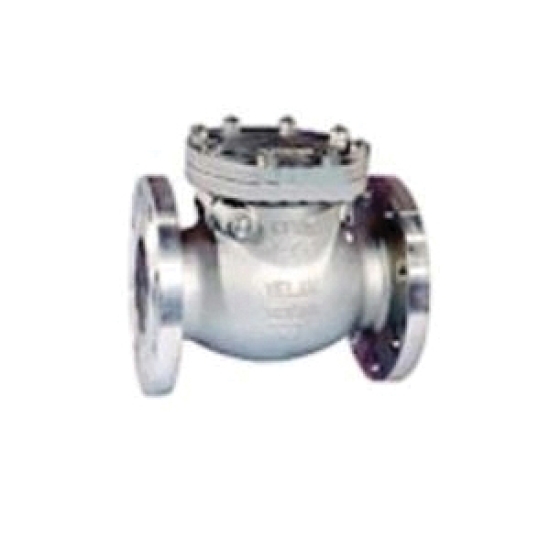

Velan F09-0114C-02TY Swing Check Valve, 2-1/2 IN, Raised Face Flange, Carbon Steel, 150 PSI, Class 150
- Manufacturer: Velan Valve Corporation
- Brand: Velan
- MGPN: 250F0114CFCV
- MPN: F09-0114C-02TY
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Velan Swing Check Valve, Type: Vertical Bolted Bonnet, Item Name: Swing Check Valve, 2-1/2 IN Nominal, Raised Face Flange Connection, 150 PSI, Pressure Class: Class 150, -20 - 1000 DEG F, Carbon Steel Body, 13% Chromium Steel Stem, 13% Chromium Steel Trim, Cobalt Chromium Alloy Seat, Other Physical Dimension: 8-1/2 IN Inlet to Outlet Length, 6-1/4 IN Top to Inlet Center
| Item Name | : | Swing Check Valve |
| Type | : | Vertical Bolted Bonnet |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Raised Face Flange |
| Pressure Rating | : | 150 PSI |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | -20 - 1000 DEG F |
| Body Material | : | Carbon Steel |
| Stem Material | : | 13% Chromium Steel |
| Trim Material | : | 13% Chromium Steel |
| Seat Material | : | Cobalt Chromium Alloy |
| Other Physical Dimension | : | 8-1/2 IN Inlet to Outlet Length, 6-1/4 IN Top to Inlet Center |
