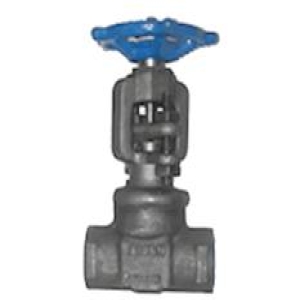

Velan W-2054W-02TY Gate Valve, 1-1/4 IN, Socket Weld, Forged Steel, 1975 PSI, Class 800
1-1/4 800 A105 WB FS STD SW GATE VALVE
- Manufacturer: Velan Valve Corporation
- Brand: Velan
- MGPN: VLV GT FS SW WB T8 VLN 1-1/4
- MPN: W-2054W-02TY
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Velan Gate Valve, Type: Welded Bonnet, Forged Steel Body, Socket Weld Connection, Stainless Steel Gland, Industry Standards: Complies - API 602 And ASME B16.34, Item Name: Gate Valve, Material Standard: ASTM A105, 1-1/4 IN Nominal, Other Physical Dimension: 5 IN End To End, 7.77 IN Center To Top Closed, 9.12 IN Center To Top Open, 1.675 IN Socket Weld Bore, 1/2 IN Socket Weld Depth, Graphite Packing, Pressure Class: Class 800, 1975 PSI, Cobalt Chromium Alloy Seat, Stainless Steel Stem, 100 DEG F, 15.000 LB Weight, Additional Specifications: Port Size: 1-1/4 IN
| Additional Specifications | : | Port Size: 1-1/4 IN |
| Body Material | : | Forged Steel |
| Connection Type | : | Socket Weld |
| Gland Material | : | Stainless Steel |
| Industry Standards | : | Complies - API 602 And ASME B16.34 |
| Item Name | : | Gate Valve |
| Material Standard | : | ASTM A105 |
| Nominal Size | : | 1-1/4 IN |
| Other Physical Dimension | : | 5 IN End To End, 7.77 IN Center To Top Closed, 9.12 IN Center To Top Open, 1.675 IN Socket Weld Bore, 1/2 IN Socket Weld Depth |
| Packing Material | : | Graphite |
| Pressure Class | : | Class 800 |
| Pressure Rating | : | 1975 PSI |
| Seat Material | : | Cobalt Chromium Alloy |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 100 DEG F |
| Type | : | Welded Bonnet |
| Weight | : | 15.000 LB |
