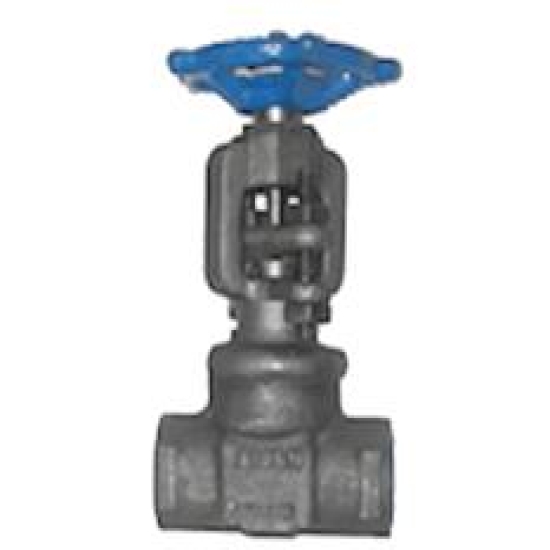

Velan S-2054W-02TY-1/2 Gate Valve, 1/2 IN, Threaded, Forged Steel, 1975 PSI, Class 800
1/2 800 A105 WB FS STD THD GATE VALVE
- Manufacturer: Velan Valve Corporation
- Brand: Velan
- MGPN: VLV GT FS THD WB T8 VLN 1/2
- MPN: S-2054W-02TY-1/2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Velan Gate Valve, Type: Standard Port, Welded Bonnet, Item Name: Gate Valve, 1/2 IN Nominal, Threaded Connection, 1975 PSI, Pressure Class: Class 800, 100 DEG F, Forged Steel Body, Stainless Steel Stem, Graphite Packing, Stainless Steel Gland, Cobalt Chromium Alloy Seat, Material Standard: ASTM A105, Industry Standards: Complies - API 602 And ASME B16.34, Other Physical Dimension: 2.88 IN End To End, 4.63 IN Center To Top Closed, 5.13 IN Center To Top Open, 0.855 IN Socket Weld Bore, 0.38 IN Socket Weld Depth, Additional Specifications: Port Size: 0.38 IN
| Item Name | : | Gate Valve |
| Type | : | Standard Port, Welded Bonnet |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 1975 PSI |
| Pressure Class | : | Class 800 |
| Temperature Rating | : | 100 DEG F |
| Body Material | : | Forged Steel |
| Stem Material | : | Stainless Steel |
| Packing Material | : | Graphite |
| Gland Material | : | Stainless Steel |
| Seat Material | : | Cobalt Chromium Alloy |
| Material Standard | : | ASTM A105 |
| Industry Standards | : | Complies - API 602 And ASME B16.34 |
| Other Physical Dimension | : | 2.88 IN End To End, 4.63 IN Center To Top Closed, 5.13 IN Center To Top Open, 0.855 IN Socket Weld Bore, 0.38 IN Socket Weld Depth |
| Additional Specifications | : | Port Size: 0.38 IN |
