1-1/2" x 1-1/4" GALV #25 TEE

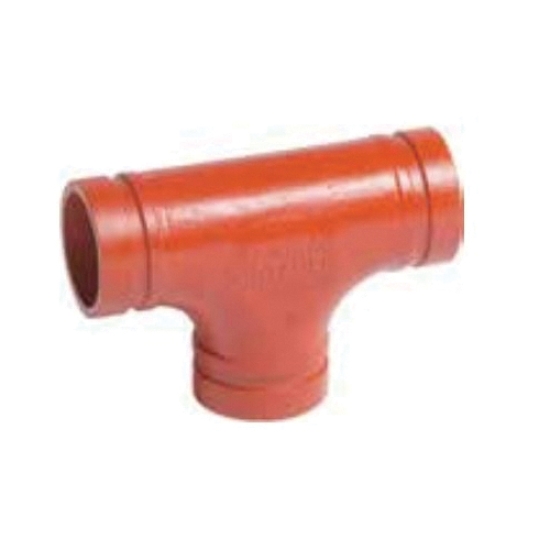

Victaulic Model 25 FB39025G00 Reducing Tee, 1-1/2 X 1-1/2 X 1-1/4 IN, Grooved, Carbon Steel, Hot-Dipped Galvanized
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC GALV TEE 25 1-1/2X1-1/4
- MPN: FB39025G00
- UPC: 688304883330
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Reducing Tee, Reducing Tee, Series/Model: Model 25, 1-1/2 X 1-1/2 X 1-1/4 IN Nominal, Connection Type: Grooved, Carbon Steel, Material Standard: ASTM A53 Type E Or S Grade B, Finish/Color: Hot-Dipped Galvanized, Method Of Manufacturer: Segmentally Welded, 1.9 X 1.9 X 1.66 IN Outside Diameter, 1000 PSI Maximum Pressure, Industry Standards: UL Classified In Accordance With ANSI/NSF-61 And ANSI/NSF-372, CE EN 10311 CPR (EU) No 305/2011, LPCB, FM Approved, Other Physical Dimension: 2-3/4 IN Center To End, Additional Specifications: Suitable For Use With: Victaulic Couplings, Valves, 1.700 LB Weight
| Item Name | : | Reducing Tee |
| Series/Model | : | Model 25 |
| Nominal Size | : | 1-1/2 X 1-1/2 X 1-1/4 IN |
| Connection Type | : | Grooved |
| Material | : | Carbon Steel |
| Material Standard | : | ASTM A53 Type E Or S Grade B |
| Finish/Color | : | Hot-Dipped Galvanized |
| Method Of Manufacturer | : | Segmentally Welded |
| Outside Diameter | : | 1.9 X 1.9 X 1.66 IN |
| Maximum Pressure | : | 1000 PSI |
| Industry Standards | : | UL Classified In Accordance With ANSI/NSF-61 And ANSI/NSF-372, CE EN 10311 CPR (EU) No 305/2011, LPCB, FM Approved |
| Other Physical Dimension | : | 2-3/4 IN Center To End |
| Additional Specifications | : | Suitable For Use With: Victaulic Couplings, Valves |
| Weight | : | 1.700 LB |
- Standard fitting pressure ratings conform to ratings of installed coupling
- All fittings supplied with grooves or shoulders for fast installation
Brochure/Catalog Name
