6X2 VIC 920 GRVD TEE W/ T GSK

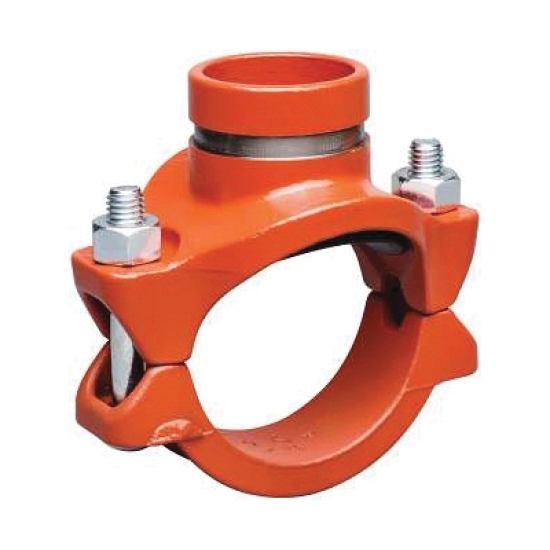

Victaulic Mechanical-T® Style 920N CE6192NPT2 Bolted Branch Outlet Reducing Tee With Grade T Gasket, 6 X 6 X 2-1/2 IN
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC TEE 920N T 6X2
- MPN: CE6192NPT2
- UPC: 688304305436
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Mechanical-T® Bolted Branch Outlet Reducing Tee With Grade T Gasket, Mechanical-T®, Bolted Branch Outlet Reducing Tee With Grade T Gasket, Series/Model: Style 920N, 6 X 6 X 2-1/2 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Coated, 6-5/8 X 6-5/8 X 2-3/8 IN Outside Diameter, 9.15 IN Length, 500 PSI Maximum Pressure, -20 To 180 DEG F, Industry Standards: cULus Listed, VDS Compliant, CNBOP-PIB, LPCB, FM Approved, CE EN 10311 CPR (EU) No 305/2011, Other Physical Dimension: 3.88 IN Width, 2-1/2 IN Hole Diameter, 4.38 X 4.38 X 5.13 IN Center To End, 4.600 LB Weight
| Sub Brand | : | Mechanical-T® |
| Item Name | : | Bolted Branch Outlet Reducing Tee With Grade T Gasket |
| Series/Model | : | Style 920N |
| Nominal Size | : | 6 X 6 X 2-1/2 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Coated |
| Outside Diameter | : | 6-5/8 X 6-5/8 X 2-3/8 IN |
| Length | : | 9.15 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -20 To 180 DEG F |
| Industry Standards | : | cULus Listed, VDS Compliant, CNBOP-PIB, LPCB, FM Approved, CE EN 10311 CPR (EU) No 305/2011 |
| Other Physical Dimension | : | 3.88 IN Width, 2-1/2 IN Hole Diameter, 4.38 X 4.38 X 5.13 IN Center To End |
| Weight | : | 4.600 LB |
- Provides a direct branch connection at any location where a hole can be cut in the pipe
- Pressures up to 500 PSI/3447 KPA/34 BAR
