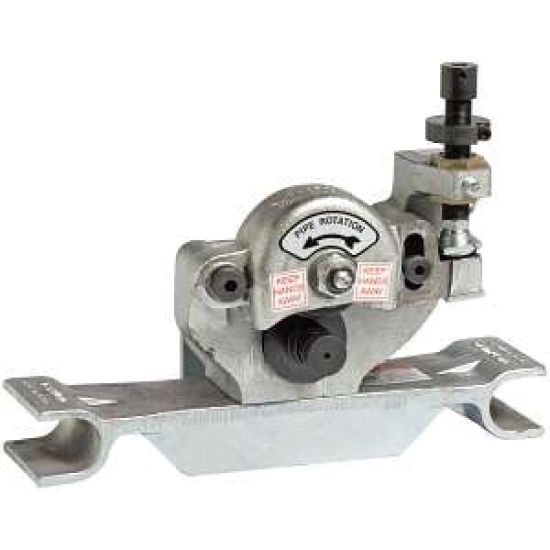

VIC TOOL 226-S

Roll grooving is a method for preparing pipe made of standard or light wall carbon steel, stainless steel, aluminum, PVC, copper and other materials. Standard roll and cut grooving meet the requirements of ANSI/AWWA C-606. For optimal joint performance Victaulic recommends that each pipe end be square cut. In the event that a beveled cut pipe is used, the wall thickness must be standard or less, and the bevel must meet ASME/ANSI B16.25 (37-1/2 IN) or ASTM A-53 (30 DEG). Square cut pipe must be used with Flush-Seal™ and EndSeal™ gaskets. Victaulic roll grooving tools are all designed to rotate the pipe or orbit the pipe as an upper grooving roll is pressed into the pipe. The lower roll provides support for the pipe as well as drives the pipe or tool from inside the pipe. Roll grooving removes no metal, the groove is cold formed into the pipe wall.

Victaulic Roll Grooving Tool, Type: Field Portable, Roll Grooving Tool, Series/Model: VE226S, 1-1/4 - 2-1/2 IN SCH 5 - 10 Steel, SCH 40S Stainless Steel, 3 - 6 IN SCH 5 - 10 Steel Capacity, Industry Standards: Essential Safety Requirements of 2006/42/EC - EU Machinery Directive And 2008 No. 1597 - UK Machinery (Safety) Regulations, 22.000 LB Weight

• Tool is operated using a standard 3/8 IN/9.5 MM square ratchet drive (not included)

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VICTOOLVE226S_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VICTOOLVE226S_Inst.pdf
