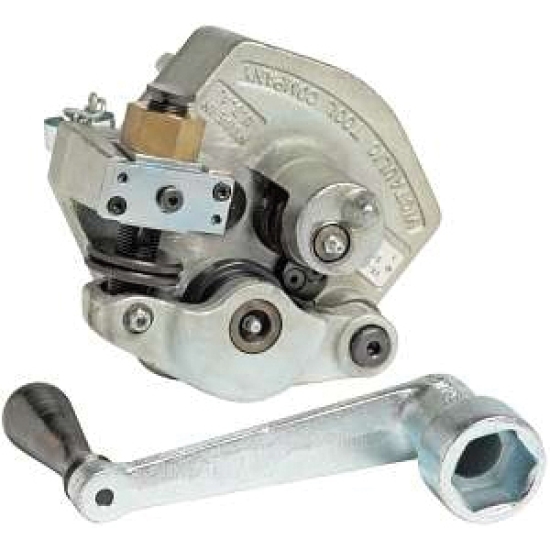

VE-26 ROLL GROOVER

Roll grooving is a method for preparing pipe made of standard or light wall carbon steel, stainless steel, aluminum, PVC, copper and other materials. Standard roll and cut grooving meet the requirements of ANSI/AWWA C-606. For optimal joint performance Victaulic recommends that each pipe end be square cut. In the event that a beveled cut pipe is used, the wall thickness must be standard or less, and the bevel must meet ASME/ANSI B16.25 (37-1/2 IN) or ASTM A-53 (30 DEG). Square cut pipe must be used with Flush-Seal™ and EndSeal™ gaskets. Victaulic roll grooving tools are all designed to rotate the pipe or orbit the pipe as an upper grooving roll is pressed into the pipe. The lower roll provides support for the pipe as well as drives the pipe or tool from inside the pipe. Roll grooving removes no metal, the groove is cold formed into the pipe wall.

Victaulic Roll Grooving Tool, Type: Field Manual In-Place, Roll Grooving Tool, Series/Model: Model VE26S, 2 - 3 IN SCH 10 Steel, SCH 40S Stainless Steel, 4 - 6 IN SCH 5 - 10 Steel Capacity, 37.000 LB Weight

• Tool is manually operated using the supplied crank
• Enhanced tracking rolls allow bi-directional grooving

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VICTOOLVE226S_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VICTOOLVE26_Inst.pdf
