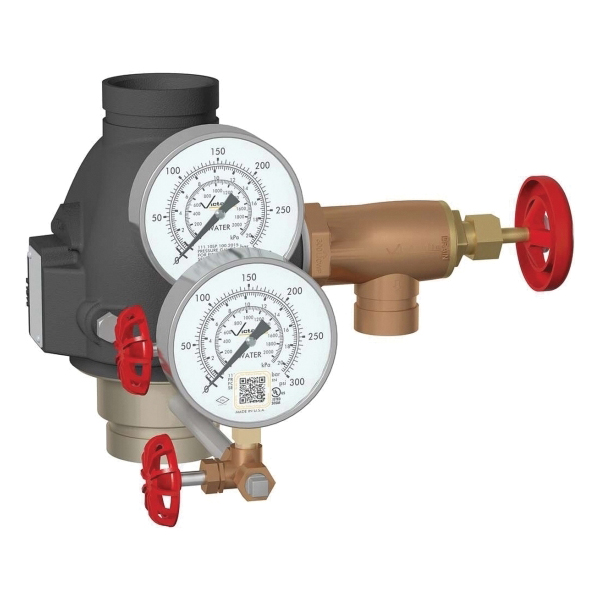

3 717HR FIRELOCK RISER CHECK VALVE

FireLock High Pressure Riser Check Valve Assembly, Series/Model: Series 717HR, Nominal Size: 3 IN, Connection Type: Grooved End, Pressure Rating: 365 PSI, Ductile Iron Body Material, Trim Material: 300 Stainless Steel Disc, Seal Material: Grade T Nitrile Disc Seal, Material Standard: Body: ASTM A536 Grade 65-45-12, Finish/Color: Black Enamel Painted, Industry Standards: C/US UL Listed, FM and LPCB Approved, VDS Compliant, CP Approved, 9.62 IN Height, Lead Free: No

• Features a stainless steel disc which seats against the o-ring seal, when mounted on the electro less nickel plated face
• Includes upstream and downstream pressure taps, must specify riser check kit when ordered
• Pressure rated up to 365 PSI/2517 KPA/25 BAR

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V010728CT0_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_CB28922YE0_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V020717PHR_Specification_Sheet.pdf
