8 X 2 VIC 920 PAINTED GROOVED MECH TEE

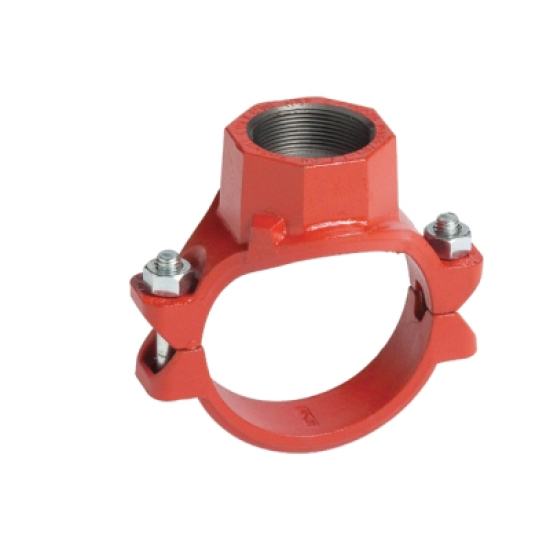

Victaulic Model 920 CF30920PE2 Bolted Branch Outlet, 8 X 2 IN, Grooved, 12.42 IN L, Carbon Steel/Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 800200P920GMT
- MPN: CF30920PE2
- UPC: 883481030397
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Bolted Branch Outlet, Item Name: Bolted Branch Outlet, Series/Model: Model 920, 8 X 2 IN Nominal, Grooved Connection, Schedule: SCH 10 and STD/SCH 40, Carbon Steel/Ductile Iron, Finish/Color: Orange Enamel Painted, 12.42 IN Length, 500 PSI Maximum Pressure, -30 - 230 DEG F, Industry Standards: cULus Listed, FM Approved, LPCB, CE, VdS, CNBOP-PIB, Other Physical Dimension: 2-3/4 IN Hole Diameter
| Item Name | : | Bolted Branch Outlet |
| Series/Model | : | Model 920 |
| Nominal Size | : | 8 X 2 IN |
| Connection Type | : | Grooved |
| Schedule | : | SCH 10 and STD/SCH 40 |
| Material | : | Carbon Steel/Ductile Iron |
| Finish/Color | : | Orange Enamel Painted |
| Length | : | 12.42 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -30 - 230 DEG F |
| Industry Standards | : | cULus Listed, FM Approved, LPCB, CE, VdS, CNBOP-PIB |
| Other Physical Dimension | : | 2-3/4 IN Hole Diameter |
