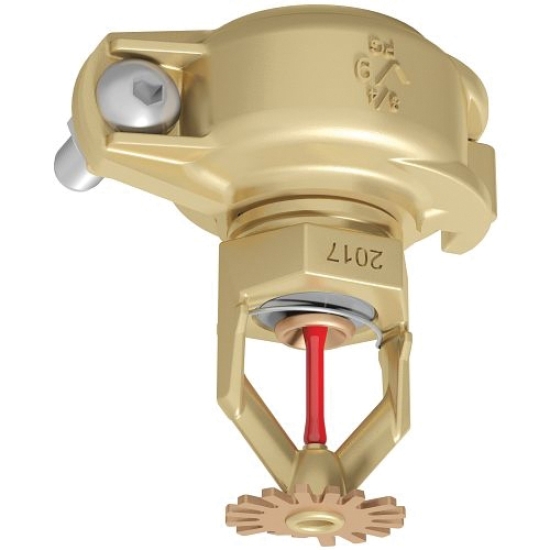

Victaulic FireLock Model V3408 S342BCQ620 Standard Coverage Sprinkler With Style V9 Coupling, 3/4 IN, MNPT, 3/4 IN
VIC S34-2BC-Q620 ELO CHROME 155 PD
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC HEAD S34-2BC-Q620 ELO PD
- MPN: S342BCQ620
- UPC: 688304933721
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Standard Coverage Sprinkler With Style V9 Coupling, Sub Brand: FireLock, Item Name: Standard Coverage Sprinkler With Style V9 Coupling, Series/Model: Model V3408, 3/4 IN, Orifice: 3/4 IN, MNPT Connection, Deflector Size: 1-5/16 IN Diameter, K Factor: 11.2, Deflector Type: Pendent, Response Type: Quick, 175 PSI (FM) Maximum Pressure, Element: 3 MM Bulb, Wrench: V34 Open End, Recessed, Deflector Material: Bronze, Brass Frame, Glass Bulb, Finish/Color: Chrome, 155 DEG F, 2-1/2 IN Height, Industry Standards: C/US UL Listed, CNBOP-BIP Approved, FM Approved
| Sub Brand | : | FireLock |
| Item Name | : | Standard Coverage Sprinkler With Style V9 Coupling |
| Series/Model | : | Model V3408 |
| Size | : | 3/4 IN |
| Orifice | : | 3/4 IN |
| Connection Type | : | MNPT |
| Deflector Size | : | 1-5/16 IN Diameter |
| K Factor | : | 11.2 |
| Deflector Type | : | Pendent |
| Response Type | : | Quick |
| Maximum Pressure | : | 175 PSI (FM) |
| Element | : | 3 MM Bulb |
| Wrench | : | V34 Open End, Recessed |
| Deflector Material | : | Bronze |
| Frame Material | : | Brass |
| Bulb Material | : | Glass |
| Finish/Color | : | Chrome |
| Temperature Rating | : | 155 DEG F |
| Height | : | 2-1/2 IN |
| Industry Standards | : | C/US UL Listed, CNBOP-BIP Approved, FM Approved |
Installation Instruction Name
