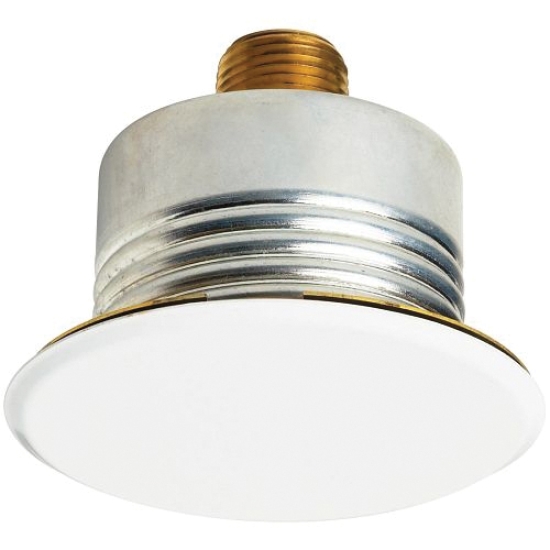

Victaulic FireLock Model V3802 A381ABH40F Standard Coverage Sprinkler Head, 1/2 IN, MNPT, 1/2 IN
VICFLEX A381PCQ41014820 48X1/2 CC 3802
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VICFLEX A381PCQ41014820 48X1/2 AH2CC 380
- MPN: A381ABH40F
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Standard Coverage Sprinkler Head, Sub Brand: FireLock, Item Name: Standard Coverage Sprinkler Head, Series/Model: Model V3802, 1/2 IN, Orifice: 1/2 IN, MNPT Connection, K Factor: 5.6, Deflector Type: Pendent, Response Type: Quick, 175 PSI Maximum Pressure, Element: 3 MM Bulb, Wrench: V38 Concealed, Deflector Material: Bronze, Brass Frame, Glass Bulb, 200 DEG F, 2-3/8 IN Height, Industry Standards: CCC Approved, CE Certified, cULus Listed, FM Approved, LPS 1186 Issue 3.1 Certified, LPCB Reference 104b/06, UKCA Approved
| Sub Brand | : | FireLock |
| Item Name | : | Standard Coverage Sprinkler Head |
| Series/Model | : | Model V3802 |
| Size | : | 1/2 IN |
| Orifice | : | 1/2 IN |
| Connection Type | : | MNPT |
| K Factor | : | 5.6 |
| Deflector Type | : | Pendent |
| Response Type | : | Quick |
| Maximum Pressure | : | 175 PSI |
| Element | : | 3 MM Bulb |
| Wrench | : | V38 Concealed |
| Deflector Material | : | Bronze |
| Frame Material | : | Brass |
| Bulb Material | : | Glass |
| Temperature Rating | : | 200 DEG F |
| Height | : | 2-3/8 IN |
| Industry Standards | : | CCC Approved, CE Certified, cULus Listed, FM Approved, LPS 1186 Issue 3.1 Certified, LPCB Reference 104b/06, UKCA Approved |
