VIKING 02280C MODEL D-2
Viking Model D-2 02280C Air Pressure Maintenance Device, 1/4 IN, 175 PSI
- Manufacturer: Viking
- Brand: Viking
- MGPN: VIK 02280C D2 AIR MAINT DE
- MPN: 02280C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:

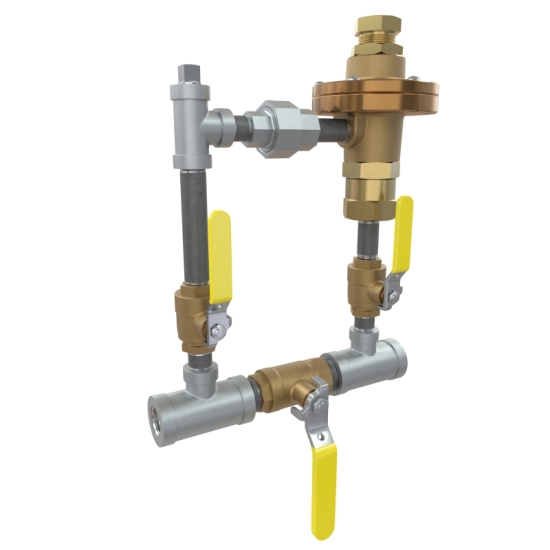

The Viking model D-2 air pressure maintenance device is a pressure regulator that automatically reduces the supply air pressure to a preset requirement when connected to a constantly maintained air supply. The preassembled device comes standard with all necessary valves , unions and trim to allow isolation and bypass.
Viking Air Pressure Maintenance Device, Air Pressure Maintenance Device, Series/Model: Model D-2, 1/4 IN Nominal, 175 PSI, 40 DEG F, Industry Standards: cULus Listed, FM Approved, 193.7 MM Width, 344.4 MM Height
| Item Name | : | Air Pressure Maintenance Device |
| Series/Model | : | Model D-2 |
| Nominal Size | : | 1/4 IN |
| Pressure Rating | : | 175 PSI |
| Temperature Rating | : | 40 DEG F |
| Industry Standards | : | cULus Listed, FM Approved |
| Width | : | 193.7 MM |
| Height | : | 344.4 MM |
- Replaceable air filter
- Ball check to prevent backflow
- 1/16 IN to prevent rapid repressurization of a system
