3 APOLLO 76-100 SS BALL

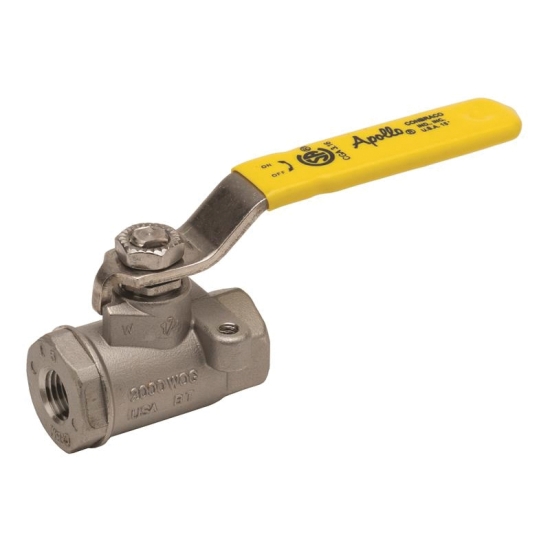

Apollo Valves Series 76-100 76-100-01 Ball Valve With Standard Configuration, 3 IN, FNPT, Stainless Steel Body
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: VLV BA SS 7610027 3
- MPN: 76-100-01
- UPC: 670750692451
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Apollo® Valves 76-100 series is a threaded, 2-piece design, standard port, stainless steel ball valve.
Apollo Valves Apollo Valves Ball Valve With Standard Configuration, Type: 2-Piece, Apollo Valves, Ball Valve With Standard Configuration, Series/Model: Series 76-100, 3 IN Nominal, Connection Type: FNPT, 2000 PSIG (CWP), 250 PSIG (SWP), 500 DEG F, Stainless Steel Body, Stainless Steel Stem, MPTFE Packing, RPTFE Seat, PTFE Seal, Material Standard: Body And Retainer: ASTM A351 Grade CF8M, Ball, Stem And Gland Nut: A276-316, Finish/Color: Silver, Industry Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved, CSA B356, NSF Certified, Meets NACE MR0175 2000 And MR0103 2012, 6-3/4 IN Width, Other Physical Dimension: 4.09 IN Inlet Center To Top Of Handle, 7-3/4 IN Handle Length, Apollo Valves, Standard Port, 6.790 LB Weight
| Brand Name | : | Apollo Valves |
| Item Name | : | Ball Valve With Standard Configuration |
| Type | : | 2-Piece |
| Series/Model | : | Series 76-100 |
| Nominal Size | : | 3 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 2000 PSIG (CWP), 250 PSIG (SWP) |
| Temperature Rating | : | 500 DEG F |
| Body Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Packing Material | : | MPTFE |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body And Retainer: ASTM A351 Grade CF8M, Ball, Stem And Gland Nut: A276-316 |
| Finish/Color | : | Silver |
| Industry Standards | : | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved, CSA B356, NSF Certified, Meets NACE MR0175 2000 And MR0103 2012 |
| Width | : | 6-3/4 IN |
| Other Physical Dimension | : | 4.09 IN Inlet Center To Top Of Handle, 7-3/4 IN Handle Length |
| Brand | : | Apollo Valves |
| Port | : | Standard |
| Weight | : | 6.790 LB |
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blowout-proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
- Meets NACE MR0175 (2000) and MR0103 (2012)
Brochure/Catalog Name
