1 DFT WLC 9033-1 SS/SS 150 CHECK VALVE

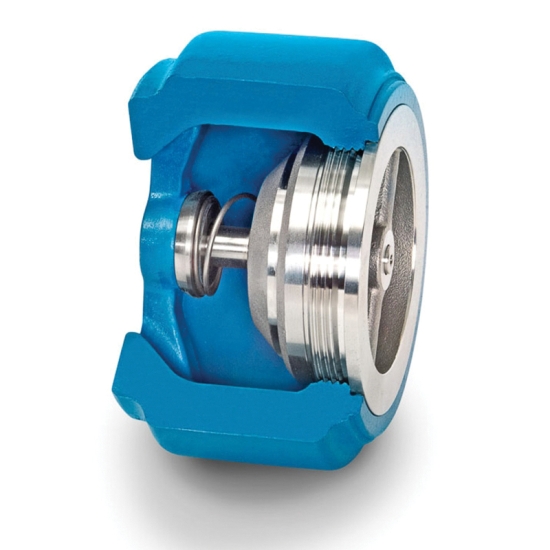

The DFT® model WLC® wafer style check valve is a lightweight, spring-assisted, center-guided, non-slam check valve that provides reliable, low-maintenance service for a wide range of fluids and pressure/temperature combinations. The joint between the seat ring and body is sealed by the flange gasket upon installation preventing any leakage through the joint when the valve is in service.

DFT WLC® Check Valve, WLC®, Check Valve, 1 IN Nominal, Connection Type: Wafer Raised Face, 0.36 PSI Cracking, Pressure Class: Class 150/300, 37 - 450 DEG F, Stainless Steel Body, 316 Stainless Steel Stem, 316 Stainless Steel Trim, 316 Stainless Steel Seat, Material Standard: Body: ASTM A351 Grade CF8M, Industry Standards: ANSI B1.1, ANSI B16.25, ANSI B16.34, ANSI B16.5, MSS SP-125, MSS SP-126, MSS SP-126, MSS SP-6, MSS SP-25, Other Physical Dimension: 2.88 IN Diameter, 2 IN Height, Additional Specifications: Flow Co-Efficient (Cv): 19, 2.000 LB Weight

• Wafer design, lightweight
• Spring-assisted silent closing
• Edge guided (1 IN and 1-1/2 IN ASME 600 to 2500)
• Center-guided/dual guided stem
• Horizontal or vertical installation
• Protected spring
• Axial flow, nozzle style
