1/2 S-235Y CLEANED F/OXYGEN

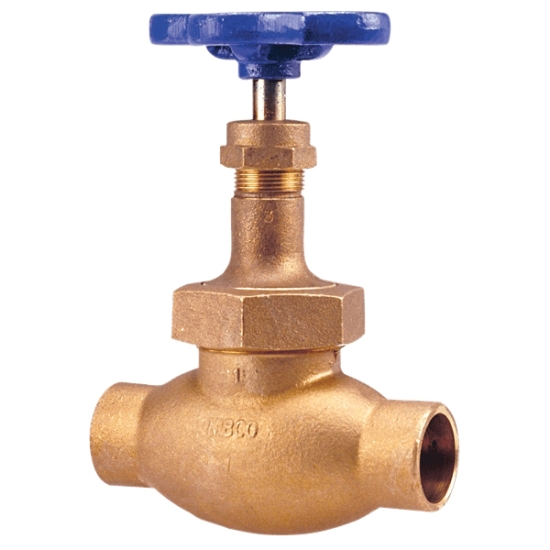

NIBCO S-235-YX NJ34W06 Globe Valve, 1/2 IN, Female Solder Cup, Class 150, Bronze Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV GL BR S235Y F/OXY 1/2
- MPN: NJ34W06
- UPC: 039923627896
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services.
NIBCO Globe Valve, Type: Multi-Turn, Union Bonnet, Globe Valve, Series/Model: S-235-YX, 1/2 IN Nominal, Connection Type: Female Solder Cup, 300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F, Pressure Class: Class 150, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, PTFE Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Nut: ASTM B62/ASTM B98, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B62, Packing Nut: ASTM B16/ASTM B124/ASTM B62, Stem: ASTM B371, Union Nut: ASTM B62, Material Specification: Disc Nut: UNS C65100, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400, Industry Standards: ASME B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2.69 IN Width, Lead Free: No, Other Physical Dimension: 4.63 IN Inlet Center To Top Of Handle, Additional Specifications: Special Features: Cleaned For Oxygen Service, 1.377 LB Weight
| Item Name | : | Globe Valve |
| Type | : | Multi-Turn, Union Bonnet |
| Series/Model | : | S-235-YX |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Female Solder Cup |
| Pressure Rating | : | 300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F |
| Pressure Class | : | Class 150 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Handle Material | : | Malleable Iron |
| Stem Material | : | Silicon Bronze |
| Packing Material | : | Aramid Fibers With Graphite |
| Gland Material | : | Bronze |
| Seat Material | : | PTFE |
| Material Standard | : | Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Nut: ASTM B62/ASTM B98, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B62, Packing Nut: ASTM B16/ASTM B124/ASTM B62, Stem: ASTM B371, Union Nut: ASTM B62 |
| Material Specification | : | Disc Nut: UNS C65100, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400 |
| Industry Standards | : | ASME B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Width | : | 2.69 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 4.63 IN Inlet Center To Top Of Handle |
| Additional Specifications | : | Special Features: Cleaned For Oxygen Service |
| Weight | : | 1.377 LB |
- 150 PSI/10.3 BAR saturated steam to 366 DEG F/185 DEG C
- 300 PSI/20.7 BAR non-shock cold working pressure
- Integral seat
- Union bonnet
- Renewable PTFE seat disc
- Class 150 solder end connections
- Use in US drinking water applications is prohibited after January 3, 2014
- Dezincification-resistant
- Conforms to MSS SP-80
