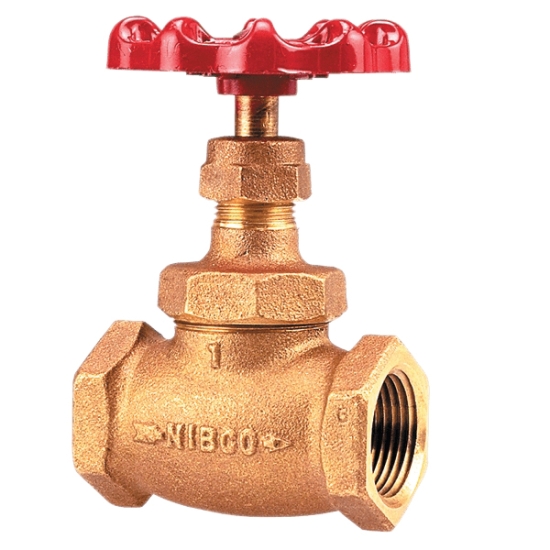

1/4 NIBCO KT-65 GLOBE VALVE

The NIBCO® bronze globe valve is recommended for trim valve application in an automatic fire sprinkler system. The resilient seat allows positive shut-off at 175 PSI WWP.

NIBCO Globe Valve, Type: Multi-Turn, Screw-Over Bonnet, Globe Valve, Series/Model: KT-65, 1/4 IN Nominal, Connection Type: FIPT, 175 PSI (WWP) Non-Shock, Bronze Body, Standard Handwheel Operator, Aluminum Handle, Silicon Bronze Stem, Non-Asbestos Graphite Packing, EPDM Rubber Seat, Material Standard: Body: ASTM B584, Bonnet: ASTM B584, Packing Nut: ASTM B16/ASTM B584, Stem: ASTM B584/B505, Material Specification: Body: UNS C84400, Bonnet: UNS C84400, Packing Nut: UNS C83600, Stem: UNS C84400, Industry Standards: ASME B1.20.1, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2 IN Width, Lead Free: No, Other Physical Dimension: 2-3/4 IN Inlet Center To Top Of Handle, 0.475 LB Weight

• 175 PSI/12.1 BAR non-shock water working pressure (WWP)
• Integral seat
• Screw-over bonnet
• Renewable seat disc
• Class 125 threaded end connections
• Dezincification-resistant
• Use in US drinking water applications is prohibited after January 3, 2014

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/012T211BGLV_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGLBRULKT6514_Spec.pdf
