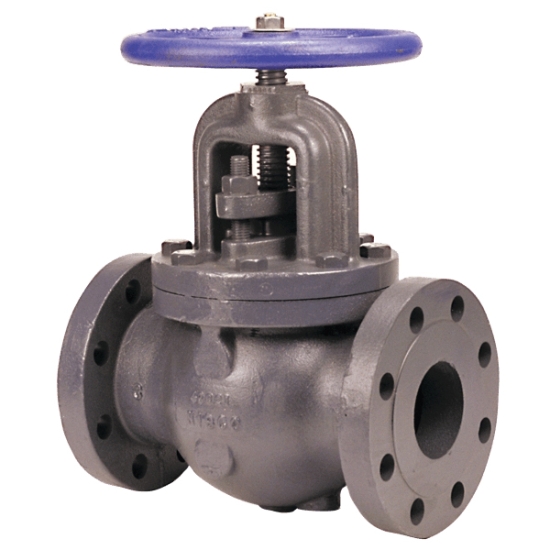

2 NIBCO 250 F768-B IBBM GLOBE VALVE

The NIBCO® class 250 cast iron globe valve is recommended for service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Globe valves are recommended for throttling or regulating flow.

NIBCO Globe Valve, Type: Bolted Bonnet, Multi-Turn, Globe Valve, Series/Model: F-768-B, 2 IN Nominal, Connection Type: Flanged, 500 PSI (CWP) Non-Shock At -20 To 150 DEG F, 250 PSI (SWP) At 406 DEG F, Cast Iron Body, Standard Handwheel Operator, Cast Iron Handle, Brass Stem, Aramid Fibers With Graphite Packing, Iron Gland, Bronze Seat, Material Standard: Body: ASTM A126 Class B, Bonnet: ASTM A126 Class B, Disc: ASTM A126 Class B, Disc Pilot: ASTM B584, Disc Ring: ASTM B584, Gland Follower: ASTM A126 Class B/ASTM A536, Gland Follower Nut: ASTM F467, Gland Follower Stud: ASTM A307/SAE J429, Handwheel: ASTM A126 Class B, Handwheel Nut: ASTM A563, Cap Screw: ASTM A307/SAE J429, Packing Gland: ASTM B16/ASTM B783, Seat Ring: ASTM B584, Stem: ASTM B16, Swivel Nut: ASTM B16/ASTM B584, Yoke Bushing: ASTM B584, Material Specification: Disc Pilot: UNS C84400, Disc Ring: UNS C84400, Gland Follower Nut: UNS C27000, Seat Ring: UNS C84400, Stem: UNS C36000, Swivel Nut: UNS C84400/UNS C36000, Yoke Bushing: UNS C84400, Industry Standards: ANSI B16.5, ANSI B16.1, MSS SP-85, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 10-1/2 IN Width, Lead Free: No, Other Physical Dimension: 10.31 IN Center To Top Of Handle, 41.597 LB Weight

• 250 PSI/17.2 BAR saturated steam to 406 DEG F/207 DEG C
• 500 PSI/34.5 BAR non-shock cold working pressure
• Iron body, bronze mounted trim (IBBM)
• Bolted bonnet
• Renewable seat and disc
• Class 250 flanged end connections
• Use in US drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-85

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/012T211BGLV_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGLIBF768B2_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGLIBF768B2_Spec.pdf
