1/2 S-134 CLEANED F/OXYGEN

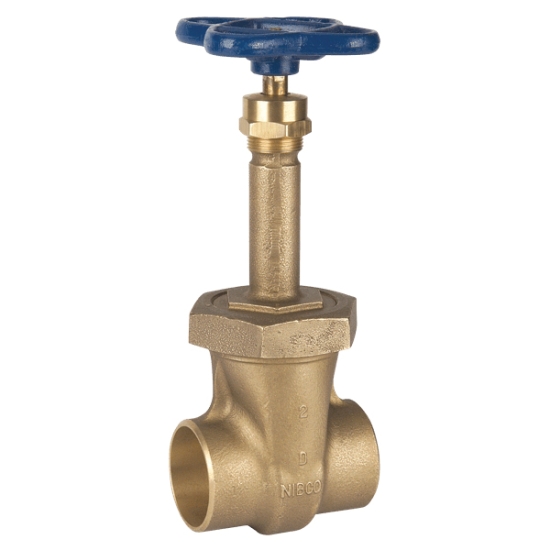

The NIBCO® bronze gate valve features a union bonnet for service where reparability in-line is required. The solder ends allow for ease of installation. Rising stem gate valves are used when shut-off is required and a quick visual indicator of open/closed position is required. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.

NIBCO Gate Valve, Type: Multi-Turn, Rising Stem, Union Bonnet, Gate Valve, Series/Model: S-134X, 1/2 IN Nominal, Connection Type: Female Solder Cup, 300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F, Pressure Class: Class 150, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, Bronze Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B62/ASTM B584, Packing Nut: ASTM B16/ASTM B124/ASTM B62, Stem: ASTM B371/ASTM B99, Union Nut: ASTM B62, Wedge: ASTM B62, Material Specification: Packing Gland: UNS C36000, Packing Nut: UNS C84400, Stem: UNS C69430/C69400/C65100, Industry Standards: ANSI B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2.31 IN Width, Lead Free: No, Other Physical Dimension: 4.81 IN Inlet Center To Top Of Handle, 0.76 IN Port Size, Additional Specifications: Special Features: Cleaned For Oxygen Service, 1.060 LB Weight

• 150 PSI/10.3 BAR saturated steam to 366 DEG F/185 DEG C
• 300 PSI/20.7 BAR non-shock cold working pressure
• Rising stem
• Solid wedge
• Union bonnet
• Class 150 solder end connections
• Dezincification-resistant
• Conforms to MSS SP-80
