1 VOGT 12111 800LB FS THRD GATE VALVE

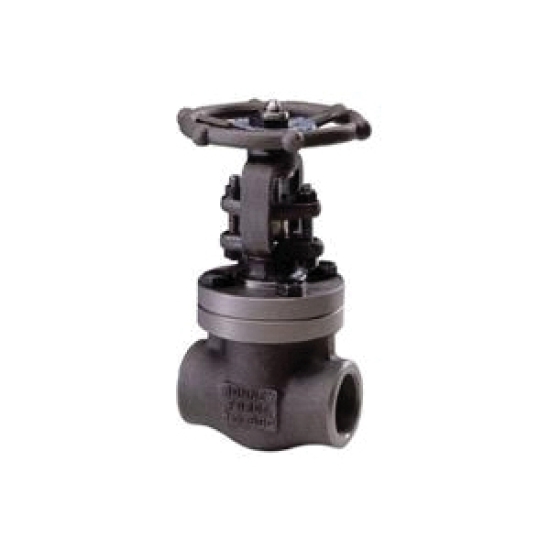

Vogt Valves 12111-1 Gate Valve, 1 IN, FNPT, Forged Steel, 1975 PSI, Class 800
- Manufacturer: Vogt Valves
- Brand: Vogt Valves
- MGPN: 10012111GV
- MPN: 12111-1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Vogt Valves Gate Valve, Type: Conventional Port, Item Name: Gate Valve, 1 IN Nominal, FNPT Connection, 1975 PSI, Pressure Class: Class 800, 100 DEG F, Forged Steel Body, 13% Chromium Steel Trim, Material Standard: ASME B16.34, Other Physical Dimension: 4 IN Inlet to Outlet Length, 8.37 IN Top to Inlet Center
| Item Name | : | Gate Valve |
| Type | : | Conventional Port |
| Nominal Size | : | 1 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 1975 PSI |
| Pressure Class | : | Class 800 |
| Temperature Rating | : | 100 DEG F |
| Body Material | : | Forged Steel |
| Trim Material | : | 13% Chromium Steel |
| Material Standard | : | ASME B16.34 |
| Other Physical Dimension | : | 4 IN Inlet to Outlet Length, 8.37 IN Top to Inlet Center |
Brochure/Catalog Name
