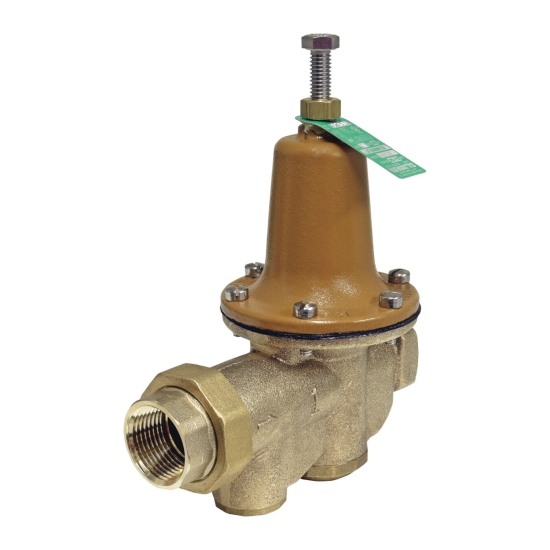

This 1 IN lead-free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 - 180 DEG F (0.5 - 82 DEG C). Suitable for up to 300 PSI, the pressure range can be adjusted from 25 - 75 PSI with the standard setting at 50 PSI.

Watts Pressure Reducing Valve, Item Name: Pressure Reducing Valve, Series/Model: Model LF25AUB-Z3 1, 1 IN Nominal, FNPT X FNPT Connection, 25 - 75 PSI, 33 - 180 DEG F, Copper Silicon Alloy Body, Industry Standards: Buy American Act Compliant, Lead Free: Yes

• NPT threaded female union inlet by NPT female outlet
• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Replaceable seat module
• Suitable for up to 300 PSI
• Pressure range can be adjusted from 25 - 75 PSI
• Designed to reduce incoming water pressure to protect plumbing systems

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/0009309_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/0009309_Spec.pdf
