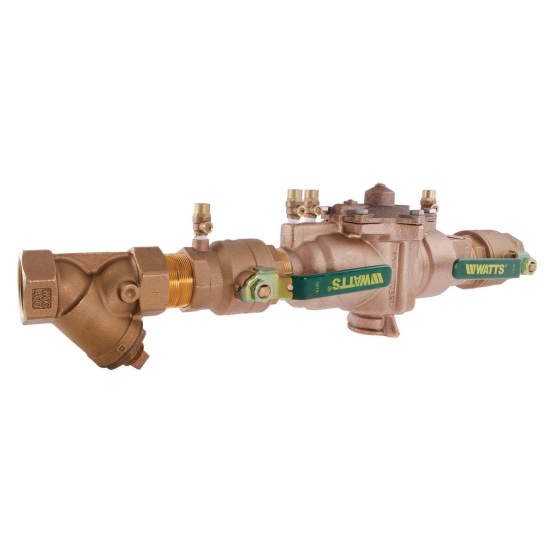

This 1-1/4 IN reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to back-siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body and strainer, NPT end connections, quarter turn ball valve shut-offs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Backflow Preventer Reduced Pressure Zone Assembly With Strainer And Quarter-Turn Ball Valve, Series/Model: Series 009M2-QT-S, Nominal Size: 1-1/4 IN, Connection Type: FNPT, Pressure Rating: 175 PSI, Temperature Rating: 33 - 180 DEG F, Bronze Body Material, Trim Material: Silicone Rubber Disc, Seat Material: Polymer Check/Stainless Steel Relief Valve, Industry Standards: UL Classified, CSA Certified, UPC Listed, USC, ASSE Number 1013, AWWA C511, CSA B64.4, IAPMO File Number 1563, 21-13/16 IN Width, Lead Free: No

• Replaceable seats for an economical repair
• Bronze body construction for durability
• Quarter turn full port resilient seated ball valve shut-offs
• Internal relief valve for reduced installation clearances
• Single access cover and modular check construction for the ease of maintenance
• Captured springs for safe maintenance
• Furnished with a strainer
• Test cocks are screwdriver slotted
• Large body passages provides a low pressure drop
