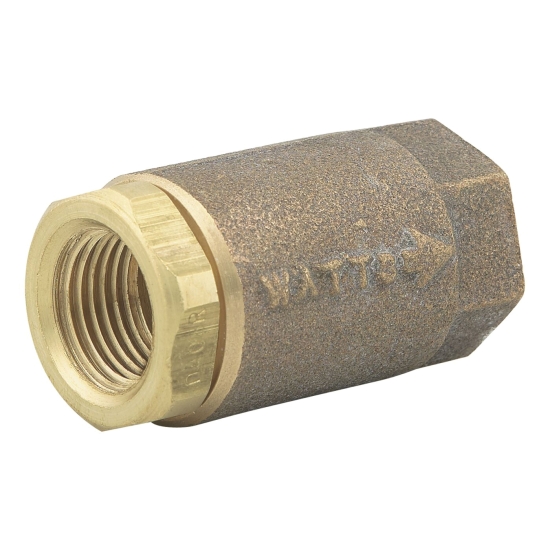

1/4 WATTS LF600 CHECK VALVE

This 1/4 IN lead-free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low-pressure drop and can be installed horizontally or vertically. This valve consists of a lead-free brass body, lead-free brass check and adapter, conical lead-free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 PSI (27.6 BAR), WOG non-shock at minus 20 to 100 DEG F (minus 29 to 38 DEG C) and 15 PSI (1 BAR) WSP at 250 DEG F (121 DEG C).

Watts Silent Check Valve, Silent Check Valve, Series/Model: Series LF600, 1/4 IN Nominal, Connection Type: FNPT, 400 PSI, -20 To 100 DEG F, Brass Body, PTFE Seat, Nitrile O-ring Seal, Industry Standards: NFS/ANSI-372 Certified, 1-1/4 IN Width, 2-1/8 IN Height, Lead Free: Yes, 0.220 LB Weight

• Lead-free brass body
• PTFE seat
• Silent operation
• Conical lead-free brass disc

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTS60014_Spec.pdf
