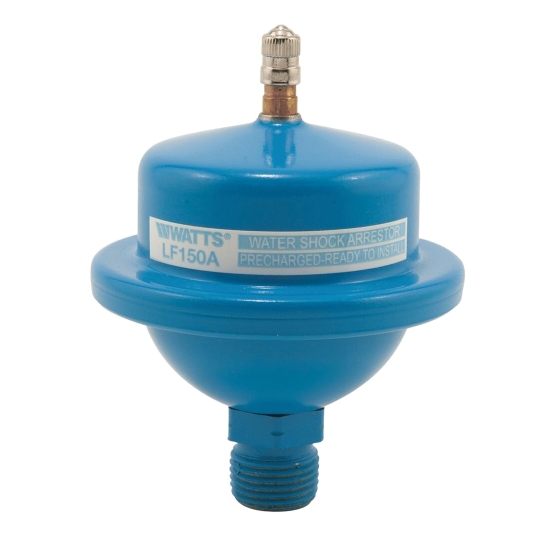

1/2 WATTS LF150A WATER HAMMER ARRESTOR

This 1/2 IN lead-free water hammer arrestor provides economical and effective single fixture protection used in residential or domestic water applications such as dishwashers, washing machines, and quick closing faucets. It is designed to control the water pressure shock and prevent water hammer conditions that are damaging to pipes and appliances. It consists of a stainless steel top and lower chamber, sealed-in diaphragm which flexes to absorb the shock, and a lead-free brass hex adapter for easy installation. This may be installed in new or existing plumbing systems vertically, horizontally or at any angle and should be installed as close to the shock source as possible, with one unit for each hot and cold water line up to 150 PSI (10.6 BAR) working pressure. It is factory air charged at 30 PSI (207 KPA) and is easily rechargeable with a standard tire valve connection and air-tight sealing cap.

Watts Water Hammer Arrestor, Water Hammer Arrestor, Series/Model: Series LF150A, 1/2 IN Nominal, Connection Type: MNPT, 180 DEG F, 150 PSI, Stainless Steel, 4-5/16 IN Length, 3-13/32 IN Width, Industry Standards: NFS/ANSI-372 Certified, 12.000 OZ Weight

• 1/2 IN NPT connection for easy installation
• Unit is factory pre-charged to 30 PSI (207 KPA)
• Easily rechargeable with standard tire valve
• Molded diaphragm with a special thermoplastic coating to prevent rust

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF150A12_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF150A12_Spec.pdf
