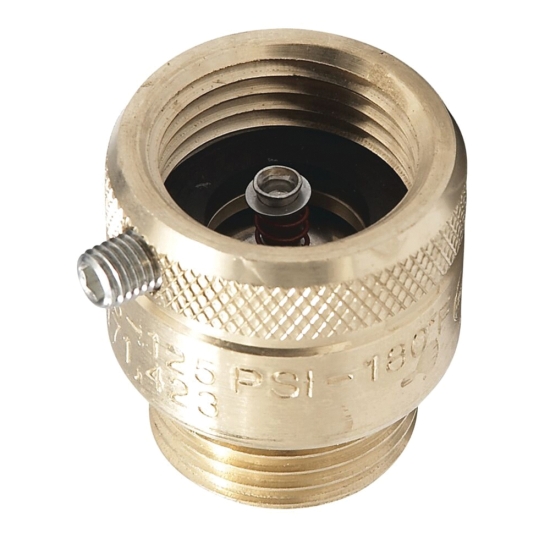

3/4 WATTS LF8 VACUUM BREAKER

This 3/4 IN lead-free hose connection vacuum breaker backflow preventer permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water into the potable water supply due to back siphonage. It consists of stainless steel working parts, and a rubber diaphragm and disc. It is secured with Allen head set screw. It is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses. Check with local inspection authorities for installation requirements. Maximum pressure is 125 PSI (8.6 BAR).

Watts Vacuum Breaker, Type: Backflow Preventer, Vacuum Breaker, Series/Model: Series LF8, 3/4 IN Nominal, Connection Type: Female GHT X Male GHT, 125 PSI, Brass Body, Industry Standards: Meets ASSE Standard 1011, NFS/ANSI-372, CSA B64.2, UPC Listed, IAPMO Certified, 180 DEG F, 1-3/8 IN Width, 1-1/2 IN Height, 4.000 OZ Weight

• Lead-free construction
• Durable rubber diaphragm and disc for consistent positive seating
• Allen set screw
• No special tools required for servicing

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF8_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF8_Spec.pdf
