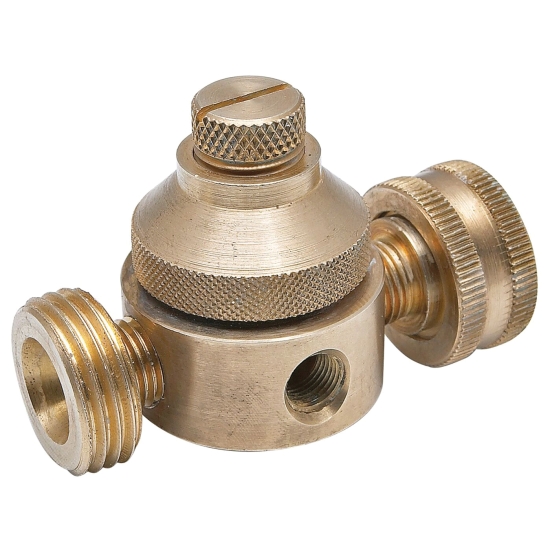

WATTS LFH560 FILL VALVE

This 3/4 IN lead-free mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and reduce water consumption. It is used in OEM applications to regulate water pressure in systems where a small economical package is required such as grid systems and recreational vehicles. It consists of a rugged lead-free brass body, female hose inlet by male hose outlet threaded connections, plugged gauge port, Buna-N seat and diaphragm, oversized orifice, stainless steel stem and spring, and a heavy-duty slotted and knurled adjusting screw. The adjustable reduced pressure range is 10 - 60 PSI (0.68 - 4.13 BAR) and is factory set at 40 PSI (2.8 BAR).

Watts Mini Water Pressure Regulator, Mini Water Pressure Regulator, Series/Model: Series LFH560, 3/4 IN Nominal, Connection Type: Male GHT X Female GHT, 300 PSI, 10 - 60 PSI Pressure Adjustment, 33 - 140 DEG F, Brass Body, Stainless Steel Stem, Buna-N Diaphragm, 3 IN Width, 2 IN Height, Industry Standards: NFS/ANSI-372 Certified, 5.500 OZ Weight

• Lead-free brass body
• Stainless steel stem and spring
• Oversized orifice
• Heavy-duty slotted and knurled adjusting screw

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLFH560_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLFH560_Spec.pdf
