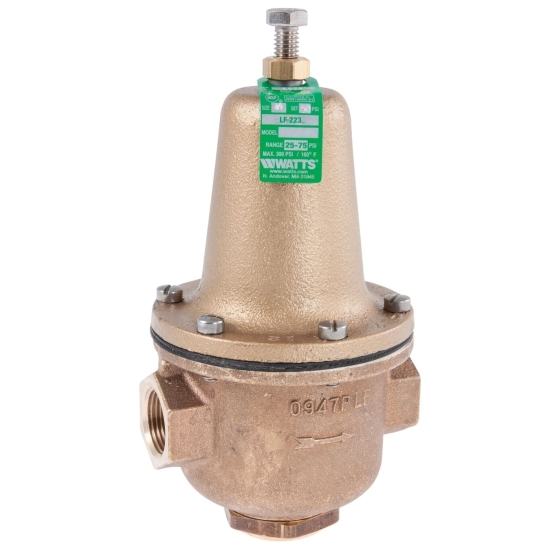

This 3/4 IN high-capacity lead-free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead-free cast copper silicon alloy body construction, NPT threaded female inlet and outlet connections, high-temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high-capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 - 75 PSI (172 - 517 kPa).

Watts LF223 Pressure Reducing Valve, 3/4 IN Nominal, FNPT Connection, 25 - 75 PSI, 33 - 160 DEG F, Cast Copper Silicon Alloy Body, Buna-N Seat, Industry Standards: ANSI A112.26, ASSE, CSA Certified, UPC, NSF Certified, 4-1/2 IN Width, Lead Free: Yes, Domestic/Import: Domestic, 5 LB Weight

• NPT threaded female inlet by NPT threaded female outlet
• Lead-free cast copper silicon alloy body construction
• Enlarged diaphragm, spring cage and seat orifice for high-capacity performance
• Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
• Sensitive spring and large diaphragm for accurate pressure control
• High-temperature resisting diaphragm for hot or cold water
• Sealed spring cage

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF22334_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF22334_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF22334_Spec.pdf
