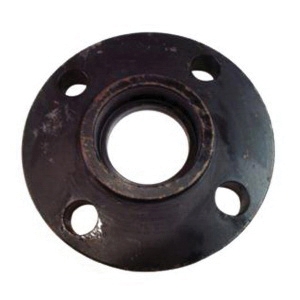

3/4 300 FS RF SOCKET-WELD FLANGE XH BORE
WELDBEND® 362-003-000 Flange, Class 300, 3/4 IN, 4.62 IN OD, Socket Weld, 0.56 IN, 3-1/4 IN Bolt Circle
- Manufacturer: Weldbend Corporation
- Brand: WELDBEND®
- MGPN: 07530FSSWFXH
- MPN: 362-003-000
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
WELDBEND® Flange, Item Name: Flange, Pressure Class: Class 300, 3/4 IN Nominal, 4.62 IN Outside Diameter, Socket Weld Connection, 0.56 IN Thickness, Raised Face, 3-1/4 IN Bolt Circle Diameter, 3/4 IN Bolt Hole Diameter, 1.88 IN Hub Diameter, Length Through Hub: 0.94 IN, Bore Schedule: XSB, Carbon Steel, Material Standard: ASTM A105, 740 PSIG Maximum Pressure, -20 - 100 DEG F, Domestic/Import: Domestic
| Item Name | : | Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 3/4 IN |
| Outside Diameter | : | 4.62 IN |
| Connection Type | : | Socket Weld |
| Thickness | : | 0.56 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 3-1/4 IN |
| Bolt Hole Diameter | : | 3/4 IN |
| Hub Diameter | : | 1.88 IN |
| Length Through Hub | : | 0.94 IN |
| Bore Schedule | : | XSB |
| Material | : | Carbon Steel |
| Material Standard | : | ASTM A105 |
| Maximum Pressure | : | 740 PSIG |
| Temperature Rating | : | -20 - 100 DEG F |
| Domestic/Import | : | Domestic |
