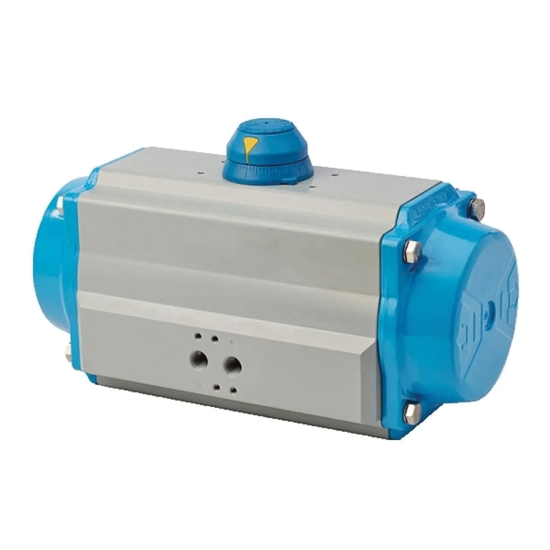

VPVL100SR6BD SPRING RETURN ACTUATOR

Jamesbury™ Valv-Powr™ VPVL Pneumatic Actuator, 2.48 IN Bore Diameter, 30 - 116 PSI, Actuation Time: 0.3 SEC Opening, 0.4 SEC Closing, 9.8 CU-IN Opening, 6 CU-IN Swept Air Volume, 9.8 FT-LB Output Torque, Finish/Color: PTFE-Coated, Industry Standards: ATEX Certified, IP67, IP68M, ISO 5211 Certified, -40 - 176 DEG F, 6.04 IN Length, 3.33 IN Width, 3.35 IN Height, Additional Specifications: Supply Media: Air/Nitrogen, Weight: 3.7 LB, Action: Spring Return

• Jamesbury™ Valv-Powr VPVL Series pneumatic actuator for fast, efficient and economical operation of rotary valves
• Modular design utilizing same body and end caps for both double acting and spring return versions
• Compact and lightweight
• High cycle life with low friction bearings on all rotating and sliding surfaces
• ISO 5211 mounting pattern
• Machined gear teeth provide longest life and smoother operation
• Safety contained springs prevent hazards of inadvertent ejection during maintenance
• Corrosion-resistant with PTFE-coated body, polyester-coated end caps and stainless steel fasteners
• Adjustable stops for both open and closed positions

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL100SR6BD_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL100SR6BD_Spec.pdf
