2 BRZ FP THRD BALL VALVE

2-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 94A, Nominal Size: 2 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), Temperature Rating: 0 - 400 DEG F, 1.969 IN Opening, Forged Brass Body Material, Lever Handle Operator Type, Handle Material: Corrosion Resistant Steel, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: PTFE Stem, Seat Material: PTFE, Finish/Color: Chrome Plated Ball And Stem, Industry Standards: MSS-SP-110 Compliant, UL Listed, CSA Certified, FM Approved, 4.181 IN Width, Lead Free: No, Other Physical Dimension: 3.681 IN Inlet Center To Top Of Handle, 5.512 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 309

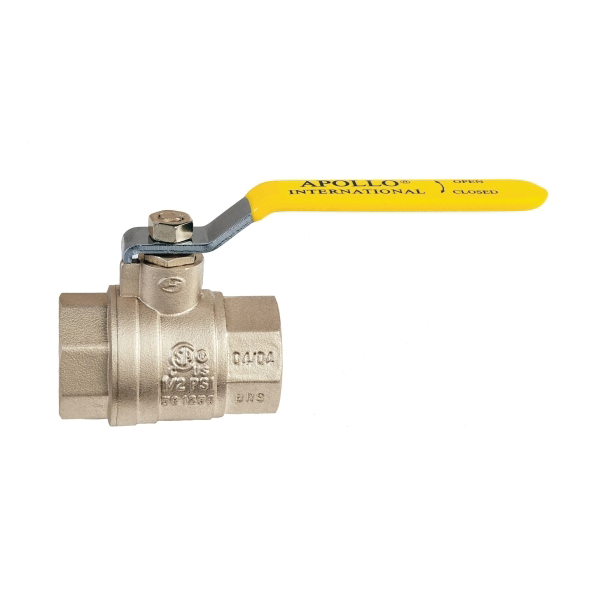

The Apollo® International™ 94A forged brass ball valve combines reliable operation with maximum economy. ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. valves include most pertinent agency approvals.

• 2-piece, full-port design
• Blow-out proof stem design
• Adjustable stem packing nut
• 100% factory tested
• Stem seal o-ring (solder version 1/2 - 2 IN)
• MSS SP-110 ball valves
• 2 YR warranty

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_32-101-27_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_94A-100-01_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_94A-100-01_Specification_Sheet.pdf
• Submittal Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_94A-100-01_Submittal_Sheet.pdf
