A/S 6063.013.002 SELECTRONIC FLUSH VALVE .125 GPF EXPOSED TOP SPUD

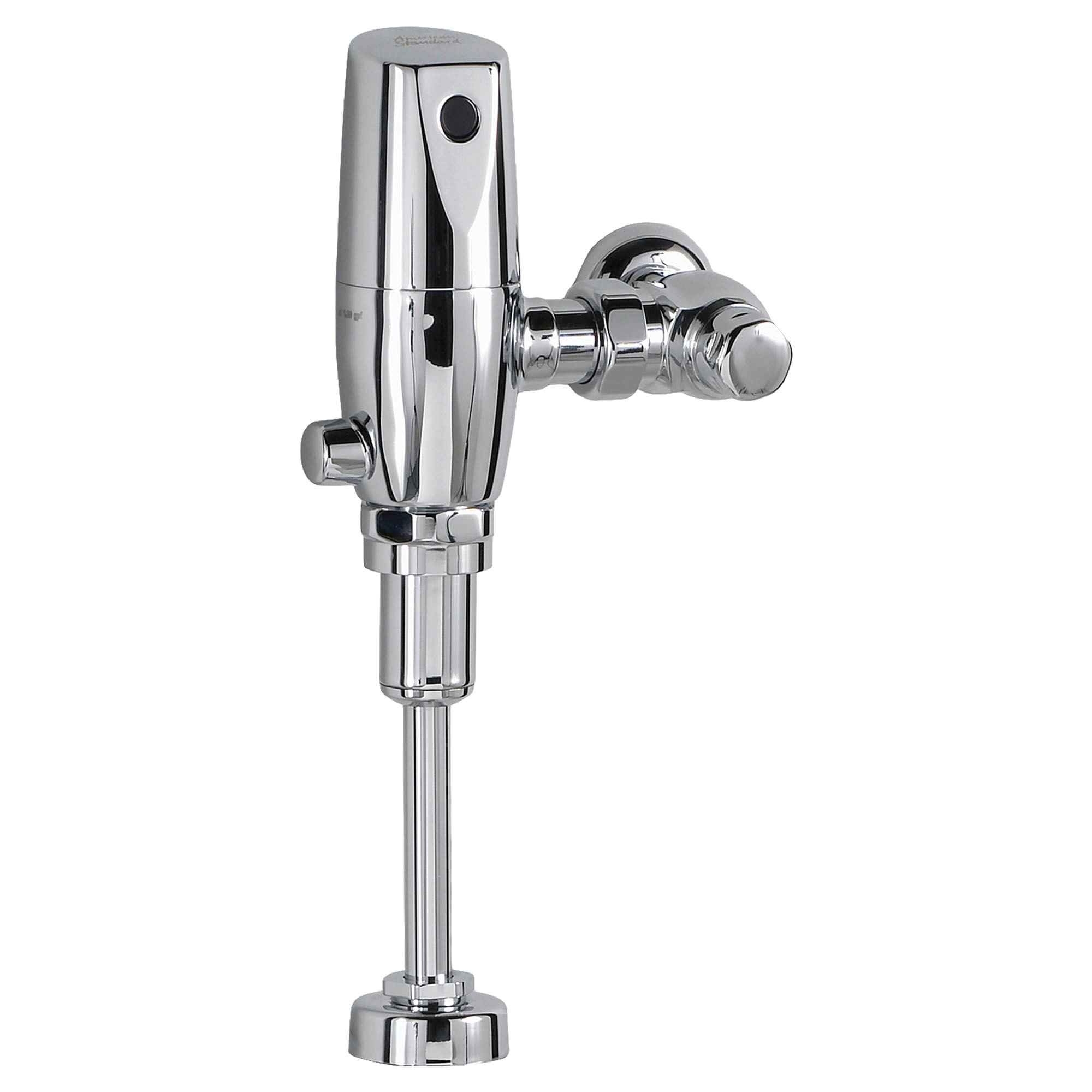

American Standard Selectronic® 6063.013.002 Polished Chrome Semi-Red Brass Body Sensor Operated Flush Valve, 3/4 IN, 0.125 GPF
- Manufacturer: American Standard
- Brand: American Standard
- MGPN: AS6063013002
- MPN: 6063.013.002
- UPC: 012611439094
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Selectronic® urinal flush valves feature a self cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs the Selectronic® flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.
| Sub Brand | : | Selectronic® |
| Item Name | : | Flush Valve |
| Type | : | Sensor Operated |
| Fixture Type | : | Urinal |
| Inlet Size | : | 3/4 IN |
| Rough-In | : | 11-1/2 IN |
| Spud Coupling | : | 3/4 IN |
| Gallons Per Flush | : | 0.125 GPF |
| Pressure Rating | : | 20 - 80 PSI |
| Connection Location | : | Top |
| Power Source | : | CR-P2 Lithium Battery |
| Sensor Range | : | 15-3/4 - 31-1/2 IN |
| Material | : | Semi-Red Brass Body, Metal Cover |
| Exposed/Concealed | : | Exposed |
| Finish/Color | : | Polished Chrome |
| Industry Standards | : | ASSE 1037, ANSI/ASME A112.19.2, ADA, CALGreen Compliant, WaterSense Compliant |
| Width | : | 2-7/8 IN |
| Height | : | 16 IN |
| Additional Specifications | : | Includes: Angle Stop With Back-Flow Protection, Vandal-Resistant Cap, Sweat Solder Kit, High Back Pressure Vacuum Breaker, Water Efficient: Yes |
- 8 YR CR-P2 lithium battery installed in valve
- Touchless operation limits the spread of germs
- Exclusive Dynaclean® self-cleaning wiper spring technology
- Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
- Fully mechanical manual override can operate without power
- Valve automatically closes upon loss of power or water pressure
- Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure
- Proprietary brass alloy resists dezincification
- 11-1/2 IN rough-in
Instruction/Installation Manual
